5. Dimensional Diagram and Labeling Modems

Dimensional Diagram

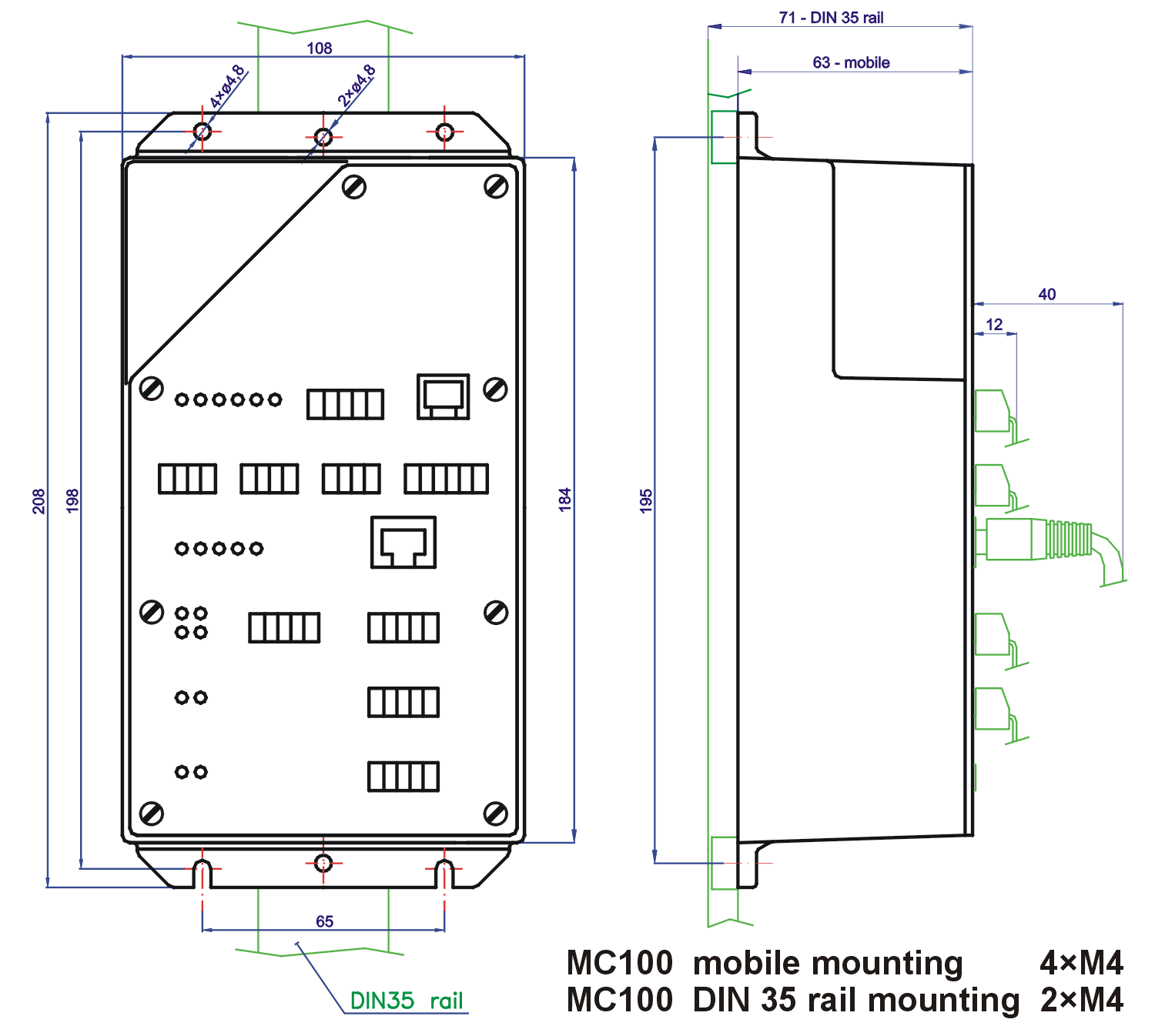

Mounting dimensions of the controler MC100

Fig. 5.1: Mounting dimensions of the controler MC100

Mounting dimensions of the radiomodem MR400, MR300 and MR160

Fig. 5.2: Mounting dimensions of the radiomodem MR400, MR300 and MR160

The modem can be fasten by four screws M4 (for mobile application especially) or by the mounting rail DIN35 (stable applications). The flexile clamps mounted in the central holes are used for fastening on the DIN35 rail.

Labelling Controllers

is described in next table.
