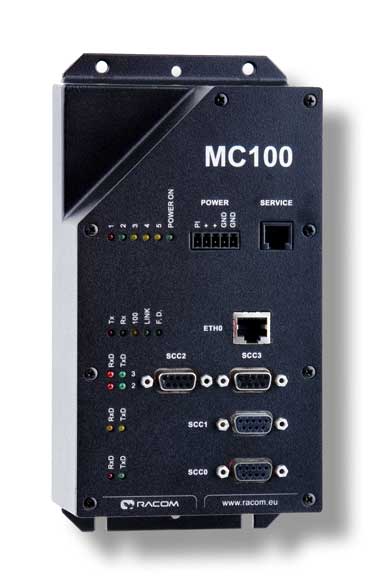

Controller MC100

mc100

The MC100 controller complements the standard range of MORSE modems. It is used primarily in places where a communication channel (e.g. IP) already exists and therefore where it is not necessary to communicate via the radio channel or GPRS. The MC100 controller is formed from the computer part of the modems – thus the modularity and user compatibility with radio modems is maintained and the same tools for control and diagnostics can also be used.

Typical areas of use

  • Complementing MORSE networks in places, where a communication channel already exists (mainly IP networks)
  • At points of the network where a greater number of ports, or digital/analog inputs/outputs are required
  • Hardware converter Ethernet/serial channels

Benefits

  • User compatible with radio modems
  • Sleep mode with power consumption 2.5 mA
  • Modular conceptEthernet, RS232 max 4x, RS422/485 max 2x, I/O – 2xAI, 2xAO, 2xDI, 2xDO
  • High mechanical resistance – rugged die cast aluminum case
  • Assembly on DIN rails or using 4 × M4 screws
  • Programs for remote control, set-up, and diagnostics provided free of charge
  • Functionality proven in extreme climatic conditions in various parts of the world

Control and diagnostics
Modules
Operating manual
Production code
Leaflet

Technical parameters

Optional modules 5 slots
MTBF (mean time between failures) > 100 000 hours
Power supply typically 13.8 V (10.8–15.6)
Consumption 180 mA (I/O +50 mA)
Operating temperatures range -25 to +55 °C
Storage temperature range -35 to +85 °C
Case dimensions 208 × 108 × 63 mm
Weight 1.2 kg
Standards complied
   EMC (electromagnetic compatibility) ETSI EN 301 489-5 V 1.3.1
   Electrical safety CENELEC EN 60 950:2000
   Use in mobile environments UN Regulation No.10 (EHK No.10)
