Cellular routers

3G / 4G CELLULAR ROUTERS

midge_01a

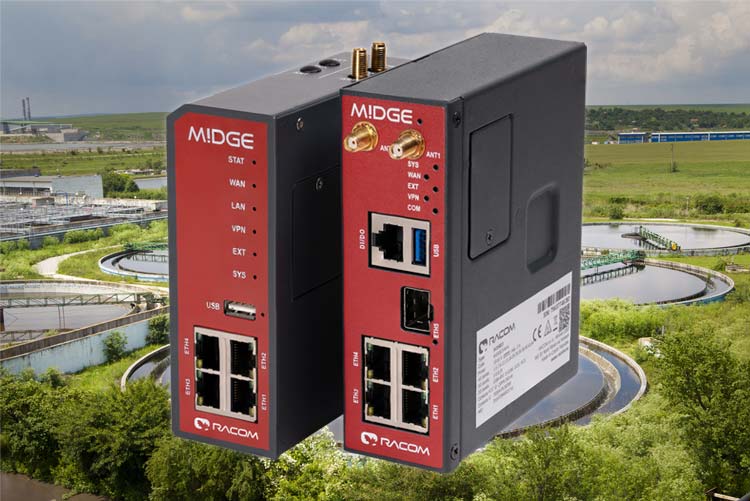

M!DGE

LTE / HSPA / UMTS / EDGE / GPRS |
| 2xETH, 1xCOM, 1xUSB, 2xDI, 2xDO |
Cellular routers

mg102i_01a

MG102i

LTE / HSPA / UMTS / EDGE / GPRS | 2xSIM |
5xETH, 1xCOM, 1xUSB, 2xDI, 2xDO | GPS |
Cellular routers

mg100_01a

MG100

GPRS
| 1xETH, 4xCOM, I/O | MR400 compatible |
Cellular routers

M!DGE
GPRS/EDGE/UMTS/LTE router
Midge
MG102i
GPRS/EDGE/UMTS router
MG102
MG100
GPRS router
MG100

HW

GPRS / EDGE Yes / Yes Yes / Yes Yes / No
UMTS / HSPA Yes / Yes Yes / Yes No / No
LTE Option Option No
SIM card slots 1 2 1
Ethernet ports 2 5 1
Serial ports 1 1 up to 3
Integrated GPS Receiver No Option Option
Temperature Range -25 to +70°C -25 to +70°C -30 to + 65°C
Input Voltage 10.2–57.6 VDC 10.2–57.6 VDC 10.4–15.8 VDC
Inputs / Outputs 2×DI, 2×DO 2×DI, 2×DO Option: 2xDI, 2xDO, 2xAI, 2xAO
Antenna connector SMA SMA FME

SW

CLI / Web interface Yes / Yes Yes / Yes Yes / No
COM port protocols COM server COM server Compatible with MR400 modems
VPN IPSec, OpenVPN, PPTP IPSec, OpenVPN, PPTP Proprietary MORSE tunnel
Encryption AES128, AES256, 3DES AES128, AES256, 3DES Blowfish
Firewall Yes Yes HOS



All RACOM GPRS/EDGE/UMTS routers are designed with attention to detail, performance and quality. Thanks to their unique features they set trends in their market segment, especially wireless data transfer for SCADA & Telemetry. Examples of such features are:

  • Hybrid networks – compatible with RACOM radio modems
  • Serial SCADA protocol implementation
  • Optimized for min. data volumes => low monthly fees

RACOM as the leader in wireless communication for SCADA & Telemetry, Fleet management and Transaction networks also designs and manufactures wireless routers for 2G, 2+G, 3G, 3+G and 4G networks. Radio modems and GPRS/EDGE/UMTS/LTE modems can be combined in one hybrid network which joins together the advantages of both the radio network and the GPRS/EDGE/UMTS/LTE network. RACOM long-term experience in design and production of radio modems for SCADA & Telemetry guaranties that 2G/3G/4G wireless routers are perfectly suited for applications using different industrial protocols like Modbus RTU, Modbus TCP, DNP3, IEC101, IEC104,
Profibus etc.

  • Existing infrastructure
  • Low investment cost
  • Public networks => quality of service not guaranteed
  • Monthly flat fees
  • Suitable for non-mission critical applications
  • SCADA & Telemetry – Water, Oil, Gas, Power, SmartGrid…
  • POS & ATM, Lottery, Weather, Transportation
  • Land lines backup
