The diversity and sophistication of applications in which the MORSE system and its components are used requires that switchboards have matching properties. RACOM offers a large range of tested switchboards which ensure that the most suitable combinations can be built for each customer whilst adhering to limitations on price and ruggedness.
Switch boards
https//www.racom.eu/eng/products/cabinets.html
Sheet metal
- IP54, also suitable for outdoor environments
- Komaxit surface coating
- Suitable for industrial applications
- A whole range of dimensions available
- Connection of antenna: N connector on the underside of the switchboard
- Connection of other devices and power supply: cable bushings
The most common types are:
WS4315
- External dimensions 400 × 300 × 150 mm (W × H × D)
- Typically mounted:
- 1× radio modem
- 1× mains power supply MS2000/12
- 1× back-up battery (12 Ah, approx. 24 hours of operation)
- 1× antenna surge arrester
- 1× 230V power supply circuit breaker
WS4520
- External dimensions 400 × 500 × 210 mm (W × H × D)
- Typically mounted:
- 1× radio modem
- 1× mains power supply MS2000/24
- 1× DCC24 (possibility to supply other appliances 24 V / 1 A)
- 2× back-up battery (2×12 Ah, approx. 24 hours of operation)
- 1× antenna surge arrester
- 1× class D over-voltage protection
- 1× 230 V power supply circuit breaker, 230 V socket
- fused terminal block for supplying external equipment with 24 V DC
- space for other devices on the DIN rail (SEP, PLC…)
Plastic
- IP66, polyester resistant to corrosion
- Suitable for extreme climates and for sea-borne applications (Lloyd’s register of ships)
- A whole range of dimensions available
- Option with external heat sink (for a radio modem with an output power of 25 W)
- Connection of antenna: N connector on the underside of the switchboard
- Connection of other devices and power supply: cable bushings
MB3317
- External dimensions 300 × 300 × 170 mm (W × H × D)
- Typically mounted:
- 1× radio modem
- 1× mains power supply MS2000/12
- 1× MRouter-A2
- 1× 230V supply circuit breaker
RACK 19″

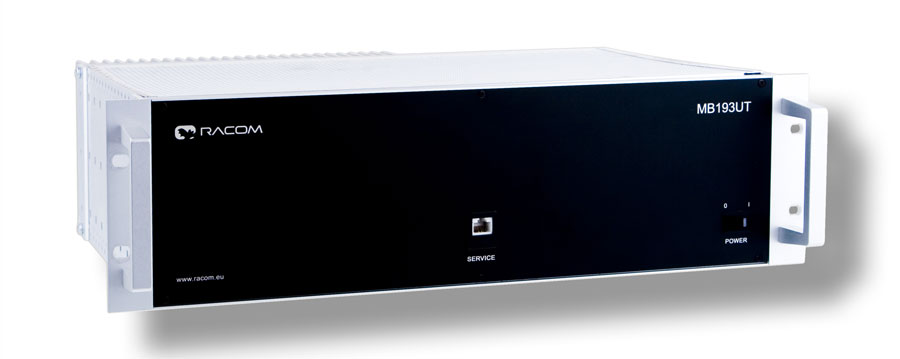

MB193U
- Height 3U
- Typically mounted:
- 1× radio modem
- 1× mains power supply MS2000/12
- 1× back-up battery
- can be modified according to specific requirements
- option with heat sink on the rear panel (for a radio modem with an output power of 25 W)
- connection of antenna: N connector on the rear panel
- connection of other devices and power supply: as requested
Other types and dimensions are available upon request.
