RAy – Unique Microwave links

RAy is a high-speed p-t-p microwave link platform suitable for links in the most challenging conditions. It is used by Internet Service Providers as well as global Telco operators for both backbone and last-mile connections.

RAy – Unique Microwave links

RAy is a high-speed p-t-p microwave link platform suitable for links in the most challenging conditions. It is used by Internet Service Providers as well as global Telco operators for both backbone and last-mile connections.

Market leader

  • Exceptional reliability over distance
  • The best spectral efficiency
  • The lowest power consumption
  • Wifi management, Mobile App

Market leader

  • Exceptional reliability over distance
  • The best spectral efficiency
  • The lowest power consumption
  • Wifi management, Mobile App

80 GHz

  • 10 Gb/s FDD
  • 62 MHz – 2 GHz channels
  • 2PSK – 128QAM
  • RF Power -6 to +20 dBm

80 GHz

  • 10 Gb/s FDD
  • 62 MHz – 2 GHz channels
  • 2PSK – 128QAM
  • RF Power -6 to +20 dBm

10, 17, 18, 24 GHz

  • 1 Gb/s FDD
  • 3.5 – 112 MHz channels
  • QPSK – 4096QAM
  • Asymmetric channels
ray-production

10, 17, 18, 24 GHz

  • 1 Gb/s FDD
  • 3.5 – 112 MHz channels
  • QPSK – 4096QAM
  • Asymmetric channels

Reliability

  • Field proven HW and FW robustness
  • High sensitivity, Hitless ACM(B) and ATPC
  • Surge immunity 4 kV, ESD 8 kV
  • Each unit tested in climatic chamber

Reliability

  • Field proven HW and FW robustness
  • High sensitivity, Hitless ACM(B) and ATPC
  • Surge immunity 4 kV, ESD 8 kV
  • Each unit tested in climatic chamber

Connectivity

Connectivity

  • 1× USB / Wifi adapter
  • RSS voltage
  • Ethernet 1 / RJ45
    + PoE or DC power
  • Ethernet 2 / SFP

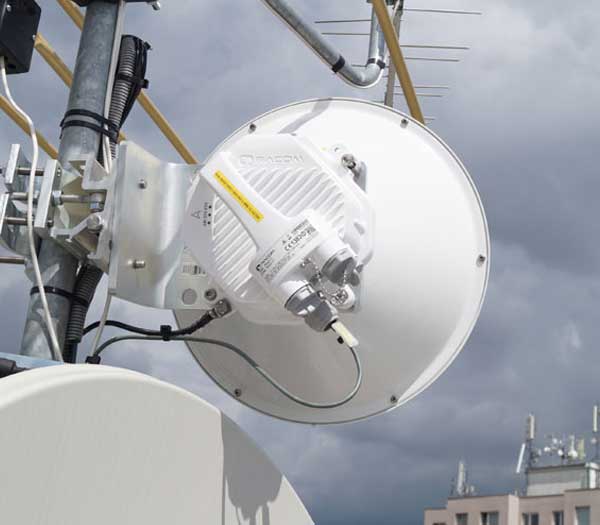

Mounting

  • Full outdoor
  • Lightweight aluminum chassis (< 2.9 kg)
  • Direct mounting on antenna
  • Just plug, twist, tighten…

Mounting

  • Full outdoor
  • Lightweight aluminum chassis (< 2.9 kg)
  • Direct mounting on antenna
  • Just plug, twist, tighten…
