RipEX4-Remote Configuration

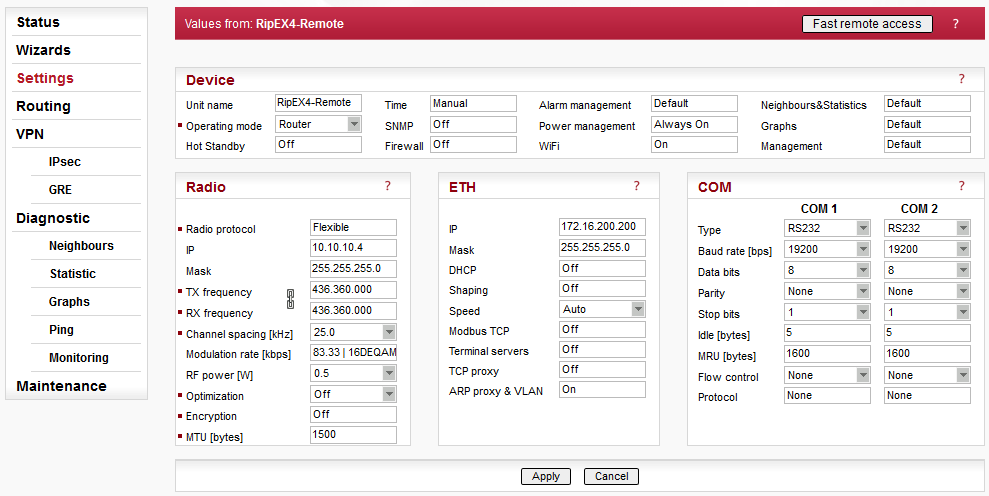

Fig. 6.1: RipEX4-Remote settings

Configure the correct Unit name and Radio/Ethernet IP addresses.

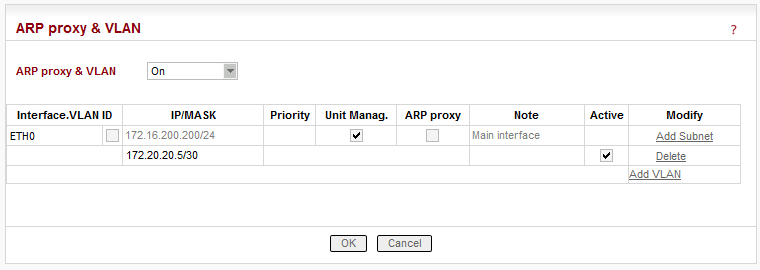

Fig. 6.2: RipEX4-Remote ETH Alias/Subnet configuration

Click on the “Add Subnet” button to add the alias IP. Fill in the 172.20.20.5/30 and click on the “OK” button.

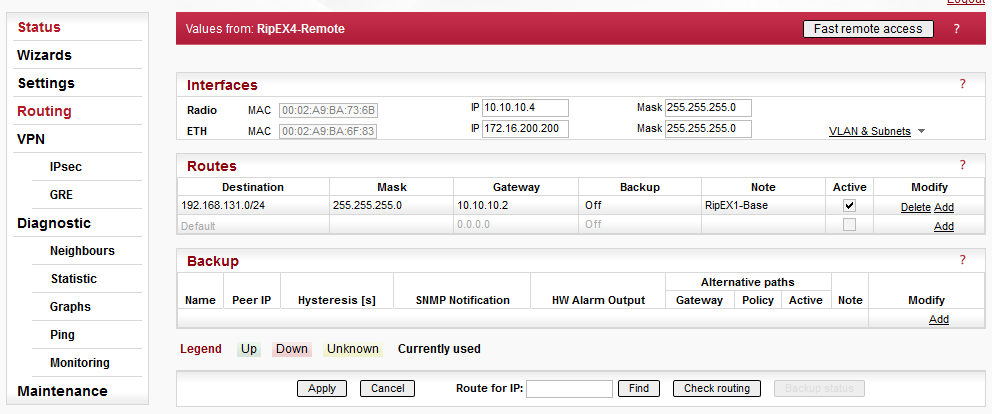

Fig. 6.3: RipEX4-Remote routing rules

There is only one routing rule – 192.168.131.0/24 is routed to the RipEX2-Remote Radio IP address. There is no GRE tunnel used. Data for 192.168.131.16/32 server will be encapsulated on RipEX2-Remote unit and routed via GRE tunnel over the Ethernet.
