5. RipEX3-Remote Configuration

RipEX3-Remote unit settings

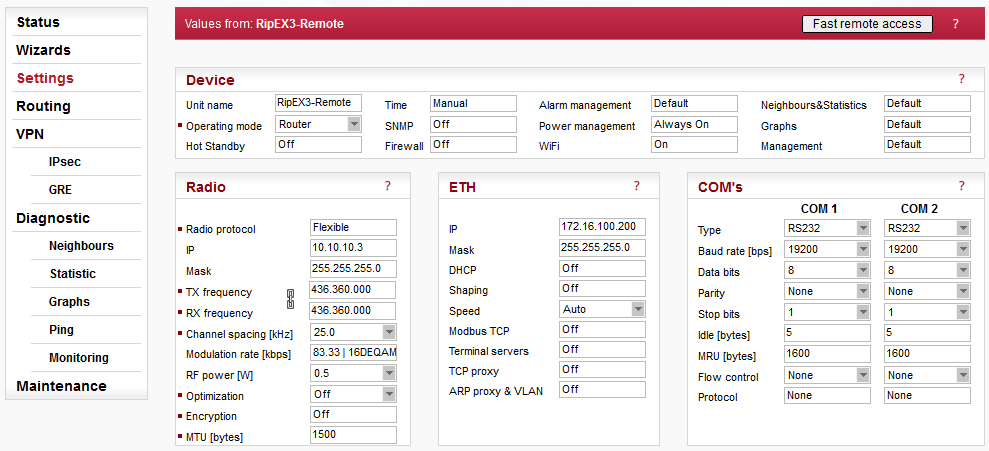

Fig. 5.1: RipEX3-Remote unit settings

Configure a correct Unit name and ETH/Radio IP addresses. There is no Alias IP address.

RipEX3-Remote routing rules

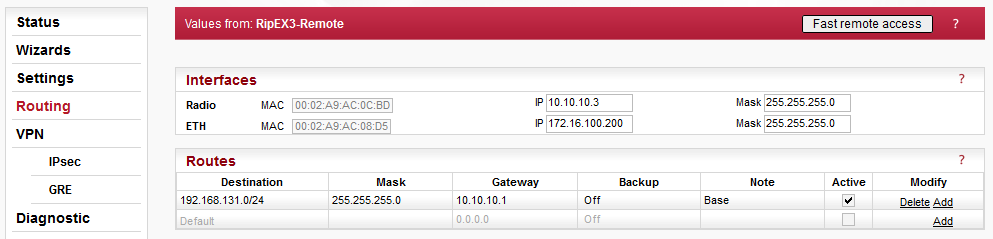

Fig. 5.2: RipEX3-Remote routing rules

There is only one Routing rule – 192.168.131.0/24 is routed to the central RipEX radio in the centre – IP 10.10.10.1

  • 192.168.131.0/24, Gateway 10.10.10.1
