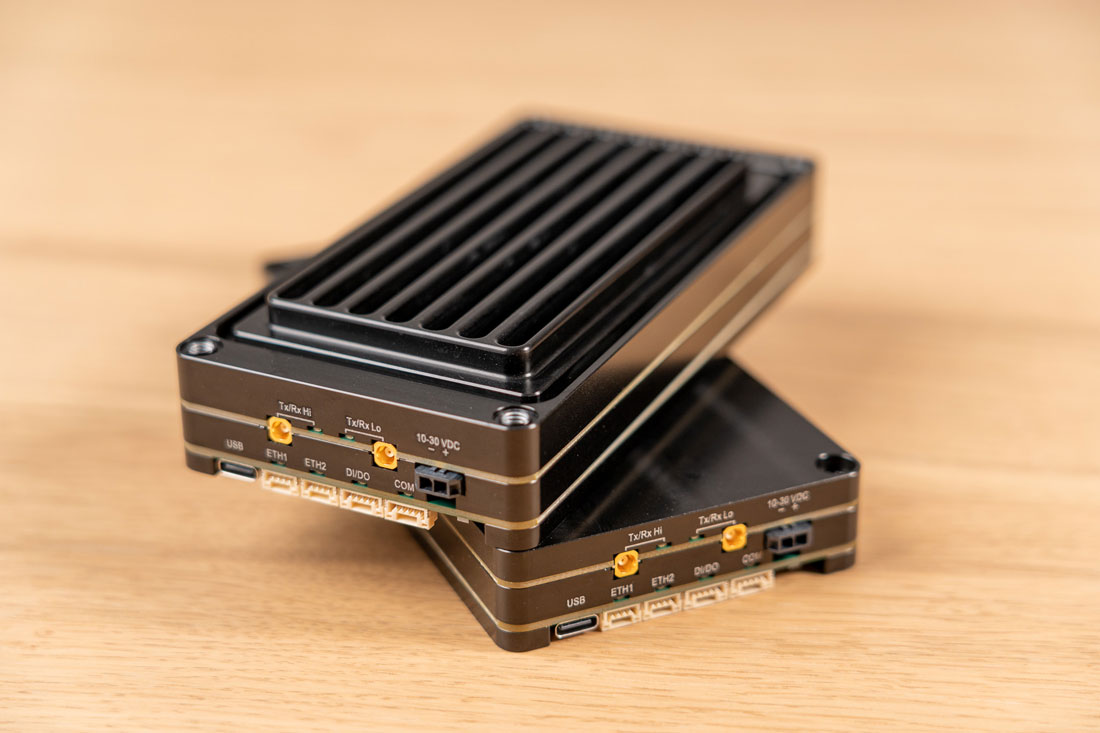

WaSP is a compact, high-performance radio modem, tailored for wireless surveillance applications. Designed for fast, secure and reliable data transfer in mission-critical operations. Its lightweight, embedded form makes it ideal for UGVs (Unmanned Ground Vehicles) and UAVs (Unmanned Aerial Vehicles), where every gram and watt matters.
WaSP
Embedded Data Radio
https//www.racom.eu/products/wasp-embedded-radio
Features
- 200 – 470 MHz and 700 – 960 MHz
- RF Power 35 dBm / 3 W
- Mesh network
- Half or Full duplex
- Asymmetric uplink / downlink
- Interference awareness frequency hopping
Performance
- 10.4 kb/s – 4.1 Mb/s
- 25 kHz – 10 MHz channels
- Power efficient CPFSK
- Static and Dynamic routing
- Unlimited coverage without Base stations
Security
- AES256, Firewall
- IPsec, OpenVPN
- RADIUS, VLAN
- Digitally signed FW
Reliability
- Defence-grade design
- −40 to +60 °C
- Each unit tested in climatic chamber
- MTBF > 100 years
- Designed & Manufactured in Czechia, EU

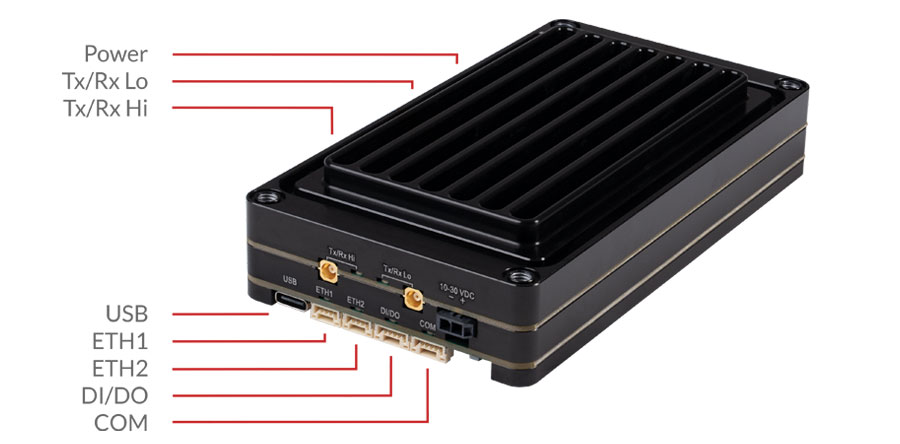

Connectivity
Support
- Free HelpDesk for everyone
- Consulting for API interface
- Tests & Commissioning live assistance
- All technical information on the web
Specifications
| Electrical | WaSP | ||||
| Primary power | 10 to 30 VDC, negative GND | ||||
| Rx | 8.3 W @ 24 V, see details | ||||
| Tx | 10 - 27 W @ 24 V for 200 - 470 MHz; 13 - 35 W @ 24 V for 700-960 MHz | ||||
| Sleep mode | 0.01 W | ||||
| Interfaces | |||||
| Ethernet | 10/100Base-T Auto MDI/MDIX | 2 × JTS-HG (4 pins) | |||
| COM | RS232 | JTS-GH (5 pins) | |||
| 600 b/s - 1 Mb/s | |||||
| USB | USB 2.0 | C - connector | |||
| Antenna | 50 Ω SW configurable 1 × Tx / Rx Hi + 1 × Rx / Tx Lo |
2× MCX | |||
| Inputs/Outputs | 1× HW alarm input
1× HW alarm output 1× Sleep input |
JTS-GH (5 pins) | |||
| Indication LEDs | |||
| LED panel | 4× tri-color status LEDs (SYS, RX, TX, COM) | ||
| ETH | 2× ETH (Link and Activity LEDs) | ||
| Environmental | |||
| IP Code (Ingress Protection) | |||
| MTBF (Mean Time Between Failure) | > 900 000 hours (> 100 years) | ||
| Operating temperature | −40 to +60 °C ( −40 to +140 °F) | ||
| Operating humidity | 5 to 95 % non-condensing | ||
| Storage | −40 to +85 °C ( −40 to +185 °F) / 5 to 95 % non-condensing | ||
| Mechanical | |||
| Casing | Rugged aluminium | ||
| Dimensions |
H×W×D: 22×78×154mm (6.0×3.0×0.8 in) |
||
| Weight |
295 g (0.65 lbs) |
||
| Mounting | through hole mounting | ||
| SW | |||
| Operating modes | Bridge / Router | ||
| Radio channel protocols | Transparent @
Bridge Base driven, Flexible @ Router |
||
| User protocols on COM | DNP3, DF1, IEC101, Modbus RTU, PR2000, RDS, Siemens 3964(R), COMLI, SAIA S-bus, Mars-A, PPP, UNI, Async Link | ||
| User protocols on Ethernet | Modbus TCP, IEC104, DNP3 TCP, Comli TCP, Terminal server… | ||
| Serial to IP convertors | DNP3 / DNP3 TCP, Modbus RTU / Modbus TCP | ||
| Routing (both, Radio and Ethernet) | Static, Dynamic - Babel, OSPF, BGP, Link management | ||
| QoS | 8 levels on all interfaces | ||
| Protocol on Radio channel | |||
| Multi master applications | Yes | ||
| Report by exception | Yes | ||
| Collision Avoidance Capability | Yes | ||
| Remote to Remote communication | Yes | ||
| Repeaters | Store-and-forward Every unit Unlimited number |
||
| Data integrity control | CRC 32 | ||
| Optimization | Intelligent payload data and header (Eth / IP / TCP / UDP) compression | ||
| Security | |||
| Management | HTTPS (Web Interface or Application Programming Interface) | ||
| Role-based access control (RBAC) | 4 levels (Guest, Tech, SecTech, Admin) | ||
| Wi-Fi management access | WPA2-PSK secured | ||
| Encryption | AES256-CCM | ||
| VPN | IPsec, OpenVPN, GRE | ||
| VLAN | IEEE 802.1Q (tagging), Q-in-Q for Transparent mode | ||
| AAA protocol | RADIUS | ||
| Firewall | Layer 2 - MAC, Layer 3 - IP, Layer 4 - TCP/UDP | ||
| FW | Digitally signed | ||
| HW tamper | Case opening evidence | ||
| Diagnostic and Management | |
| Link testing | ICMP ping, RSS ping |
| Status information | User interfaces |
| Statistics |
Historical and differential statistics for Rx / Tx Packets on all user
interfaces (ETH, COM, TS) and Radio interface - for individual
connections. |
| Statistics history | Several weeks |
| Event log | Events filtered by time, severity, user, remote IP address and type of event |
| SNMP | SNMPv1, SNMPv2c, SNMPv3 Trap / Inform alarms generation as per settings |
| NTP | Client / Server |
| Monitoring | Real time analysis of all interfaces (RADIO, ETH , COM, TS and internal interfaces between software modules. |
-
-
Trade name – trade and marketing name of the product. This name is used for all products within the same product family.
-
Possible values: WaSP
-
-
Gen. – generation of the product of specific Trade name.
-
Possible values: 1
-
-
Band – frequency band and sub-band
-
Possible values:
-
2A: 200 - 470 and 700 - 960 MHz
-
-
Ext. – Extension module embedded in mPCIe slot.
-
Possible values:
-
N – not used
-
-

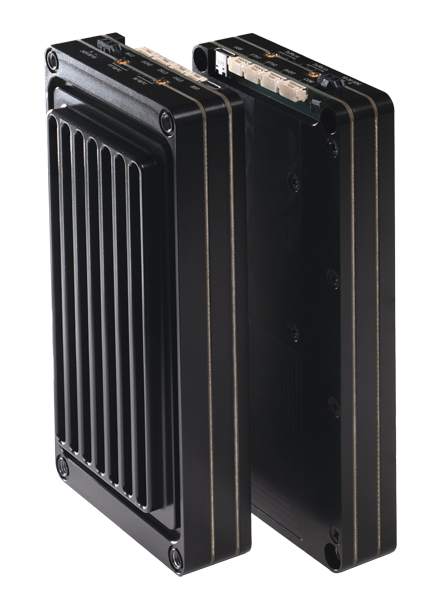

Var. – designation of product variant. This variant is fixed in unit HW and cannot be changed later on.
-
Possible values:
-
A – casing without cooling radiator
-
B – casing with cooling radiator
-
-
SW keys – if unit is ordered with SW keys, all keys are specified in this bracket. SW key can be ordered independently for specific S/N anytime later on.
-
Possible values (subject to availability of a respective SW feature with a particular HW configuration):
-
Master – enables all functionalities of all possible SW feature keys, excl. Ex; Part No.: WaSP-SW-MASTER
-
-
Type – specific product type
-
Possible values:
-
WASP1-2
-
-
Code – part of order code which is printed on Product label on the housing (SW keys are not HW dependent and can be ordered later on, so they are not printed on Product label).
-
Order code – the complete product code, which is used on Quotations, Invoices, Delivery notes etc.
The WaSP unit uses frequency hopping listed as 5A001.b.3.b in the Regulation (EU)
2021/821, setting up a Community regime for the control of exports, transfer, brokering and
transit of dual-use items. Units are subject to export control when exporting outside the
European union, according to national, EU and US law (ECCN 5A001.b.3.b),
see
https://policy.trade.ec.europa.eu/help-exporters-and-importers/exporting-dual-use-items_en.
In the case of export from the country where the units were delivered by
, the exporter must inform of the new country of delivery.
