Highlights

  • LTE,HSPA+,UMTS,EDGE,GPRS
  • 5 port Ethernet switch / router
  • 2× SIM / twin module available
  • Extended temperature range
  • Vibration and shock hardened
  • Failover for fixed line
  • SCADA protocols
  • Extended input voltage range
  • GPS receiver with NTP server
  • SDK – software development kit

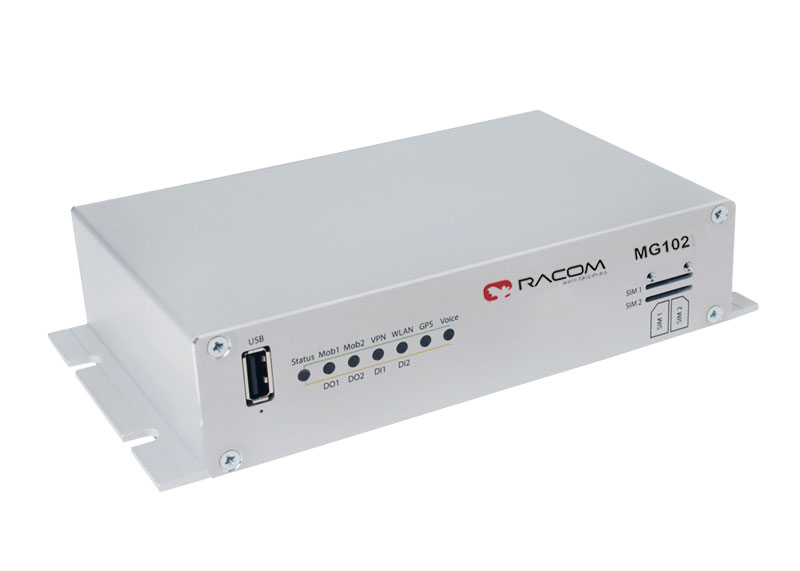

MG102i wireless router securely and wirelessly connects two private networks/sites (e.g. Remote LAN and company Intranet) via public mobile networks and the Internet. The benefits of such Virtual Private Networks (VPN) are flexibility, security, cost-effectiveness and convenience.

MG102i is a GPRS/EDGE/UMTS/HSPA router and enables fast and secure data transmission between two sites. For the establishment of Virtual Private Networks (VPN) two different technologies are supported: IPsec and OpenVPN. For simple applications the use of Dynamic DNS or fixed IP addressing can replace the need of a VPN.

Multiple devices can directly be attached to the MG102i thanks to the integrated 5 port Ethernet switch/router. The dual SIM feature guarantees best availability of network connections. MG102i Software is based on well proven components including an Embedded Linux operating system and standard communication protocols.

The NTP server with GPS time allows precise time synchronisation in each remote location.

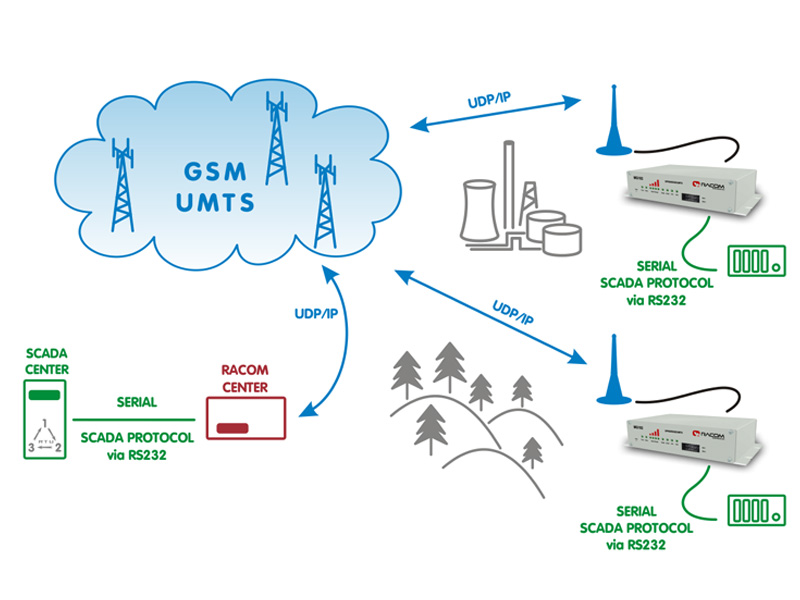

The addressed SCADA and telemetry serial protocols can by efficiently used over GSM networks. The MG102i Terminal server can communicate with a RACOM central device equipped with serial protocols, e.g. a RipEX. A hybrid network, where individual RTUs are connected either via MG102i (GSM) or via RipEX (UHF radio) to the same centre, is possible as well.

MG102i is a new product that extends HW and SW functionality of previous MG102 and is fully SW compatible with M!DGE routers.

Features

  • Mobile connection LTE, HSPA+, UMTS, EDGE, GPRS and GSM
  • Global connectivity
  • Transparent hand-over between 2G, 3G and 4G
  • Input voltage: 12 – 48 VDC (-15%/+20%)
  • Max. power consumption 5 W / 10 W (for double module unit)
  • Fallback Management
  • Connection supervisor
  • Automatic connection recovery
  • OpenVPN (client, server), IPsec, PPTP, Mobile IP
  • DHCP server, DNS proxy server, DNS update agent
  • Telnet server, SSH server, Web server
  • NTP client and NTP server with GPS time
  • COM server
  • Firewall, SMS Routing and Filtering, NAPT
  • SMS router and firewall
  • SDK – programmable scripts
  • Dial-in
  • Redundancy
  • Voice Gateway (option)
  • 5 port Ethernet switch 10/100 Base-T, Auto MDX, 5×RJ45 connector
  • RS232 DCE interface, 3 pins on the 13-pin terminal block
  • 2 digital inputs, 2 digital outputs
  • USB Host Interface

Serial

  • Modbus, IEC101, DNP3, Comli, DF1, RP570, Siemens 3964(R) and others
  • Serial SCADA protocol addresses are mapped to IP addresses

Ethernet

  • TCP(UDP) protocols (e.g. IEC104, DNP3/TCP, etc.) are handled transparently
  • Web interface, CLI available
  • File configuration
  • OTA SW update
  • Advanced troubleshooting
  • SMS remote control, SMS and E-mail notification
  • SNMP v.1, v.2c, v.3

Specifications

Mobile Interface UMTS 3G – WCDMA, HSDPA, HSUPA, HSPA+: B1(2100), B2(1900), B5(850), B8(900)
2G – GPRS, EDGE, GSM: 850, 900, 1800, 1900
Data rates: max. 14.4 Mbps downlink / 5.76 Mbps uplink
Mobile Interface LTE 4G – LTE: B1(2100), B2(1900), B3(1800), B5(850), B7(2600), B8(900), B20(800), all bands with diversity
3G – WCDMA, HSPA, HSPA+: B1(2100), B2(1900), B5(850), B8(900), all bands with diversity
2G – GPRS, EDGE, GSM: 850, 900, 1800, 1900
Data rates up to 100 Mbps downlink / 50 Mbps uplink (DC-HSPA+ 42/5.76)
SIM slots 2 Mini-SIM ISO/IEC 7810:2003, ID-000

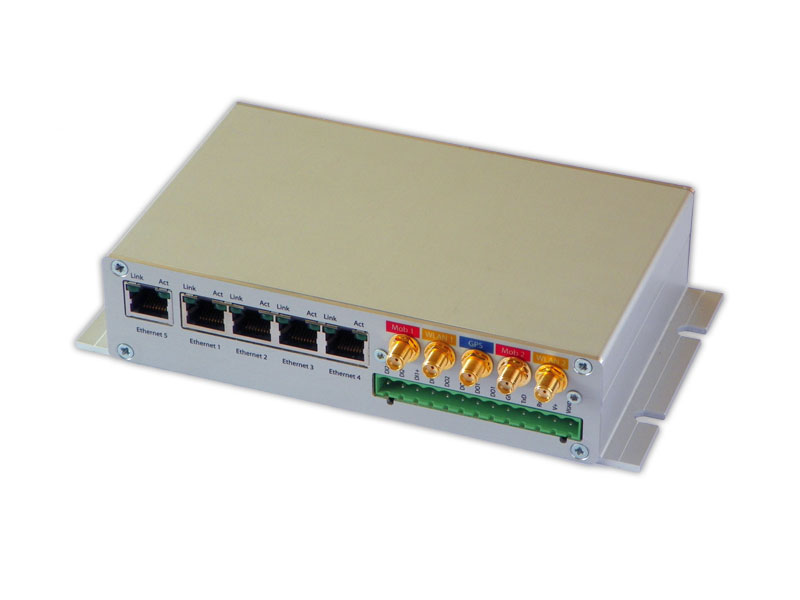

Ethernet Switch 5 Port Ethernet Switch 10/100 BaseTX, auto MDX
Serial Interface 1× RS232 DCE interface 3 pins on the 13-pin terminal block
Digital I/O 2 digital inputs, 2 digital outputs, 8 pins on the 13-pin terminal block
USB USB Host Interface, connector type USB A
Antenna Interface 1× GSM (2× LTE), GPS, 2× Wi-Fi
Impedance: 50 Ω
Plug: SMA female
GPS passive or active
Power Supply Input voltage: 12 to 48 V DC (-15 % /+20 % ,10,2–57,6 V DC)
Max. power consumption: Rx max. 1.9 W
Tx max. 6 W
Environmental Conditions For indoor use only, IP40
Temperature range:
UMTS/WLAN -25 °C to +70 °C (-13 to +158°F)
LTE -25 °C to +60 °C (-13 to +140°F)
Humidity: 0 to 95 % (non condensing)
Vibration and shock hardening
Dimensions 190 W × 104 D × 40 H mm (7.48 × 4.09 × 1.57 in)
Weight ca. 610 g (1.35 lbs)
Approval CE, FCC
Options
3G or LTE model
GPS SW key Integrated GPS receiver with NMEA0183 data stream
Supported passive or active GPS antenna, SMA female connector
WLAN Integrated Wi-Fi 802.11 a/b/g/n client, Wi-Fi 802.11 b/g/n server for max. 128 clients
Antenna SMA female, antenna diversity
Voice Gateway SW key VoIP to GSM gateway
Mobile IP SW key Mobile IP VPN tunnel
VPN Server SW key expansion SW key from 11 to 25 OpenVPN clients
Antennas Various antennas available suitable for your application
DIN Rail DIN rail bracket

Applications

Accessories

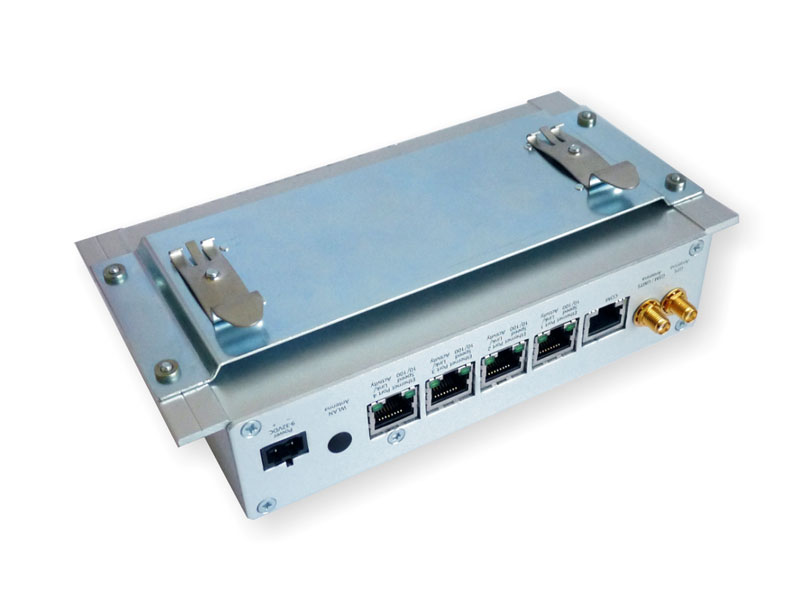

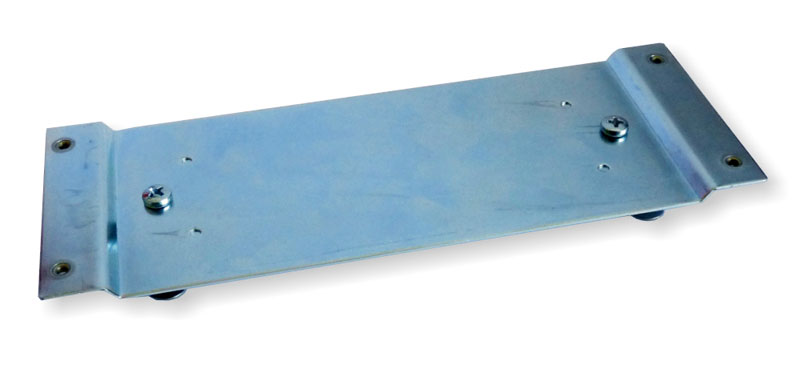

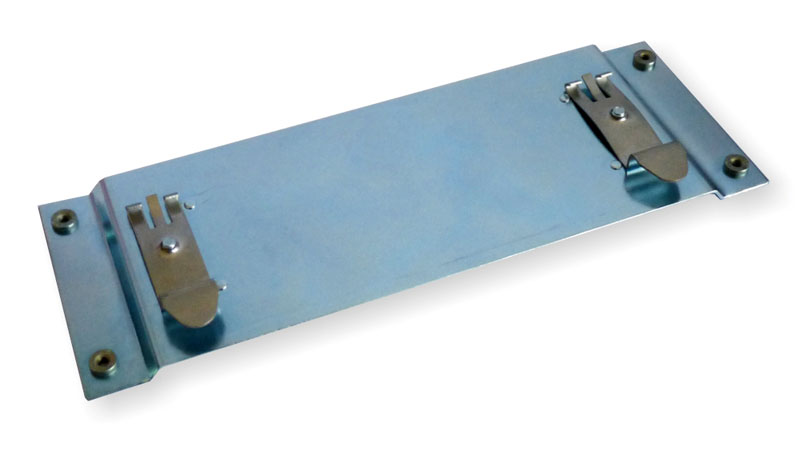

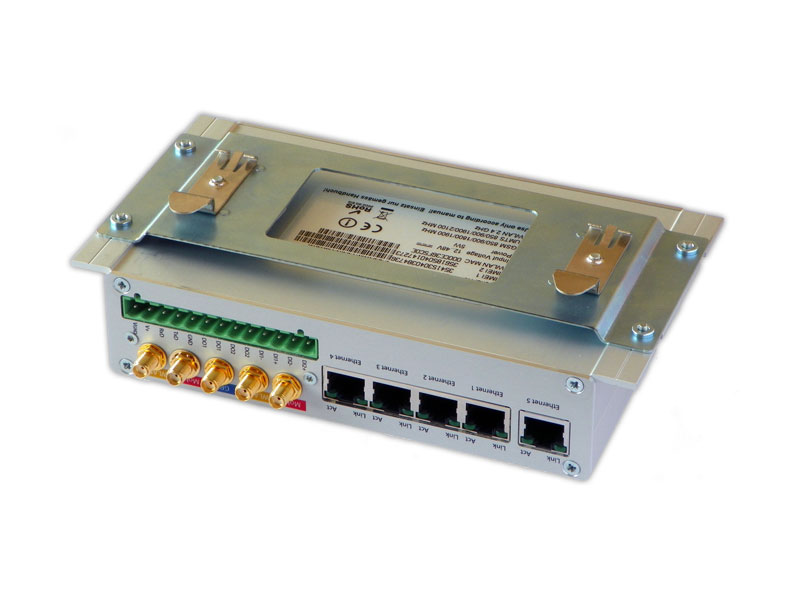

  • DIN rail mounting kit
mg102_bracket01
  • Heavy duty 3rd party products, tested in all environments
  • Recommended by RACOM:
power_sup01b
midge_antena1_b

Download

MG102i
Datasheet MG102i mg102i-ds-en.pdf1 421 kB18.06.2013
MG102iGPRS/UMTS/HSPA+/LTE
router - Operating manual
mg102i-man-en.pdf4 458 kB08.12.2017
Application note – M!DGE/MG102i midge-app-en.pdf205 kB07.12.2017
MG102i - firmware
Firmware MG102i mg102i-fw-4.0.40.109.img17 331 kB02.03.2018
List of changes in FW 4.0.40 mg102i-fw-rn-en.pdf403 kB02.03.2018
Antennas
Antenna GPS Active 3-5V, 5 m, magnetic, SMA connector ANT-GPS-MS-SMA.pdf216 kB30.10.2003
Antenna GPS passive + GSM/UMTS, 5 m, SMA connectors ANT-GSM-GPS-PAS2.pdf243 kB16.12.2011
Antenna GSM/UMTS, 5 dBi, 3 m, SMA connector ANT-GSM-M5-300.pdf249 kB19.11.2012
Antenna GSM/UMTS, 9 dBi, 3 m, SMA connector, magnetic ANT-GSM-MG9S.pdf339 kB16.11.2011
Antenna LTE/UMTS/GSM, 2,0 dBi, 3 m, SMA connector ANT-LTE-W1.pdf64 kB04.12.2012
Stick antenna 90°, GSM/UMTS, 2 dBi, 3 m, SMA connector ANT-GSM-RAO.pdf241 kB24.09.2013
