Before a microwave link can be installed, an analysis and calculation of the microwave link must be made first. The analysis should take place before the site survey itself to get a clear idea about the dimensions of the antennas. The analysis consists of the following steps:

Free space loss calculation

Link budget calculation

Rain attenuation

Multipath fading

Fade margin

Fresnel zones calculation

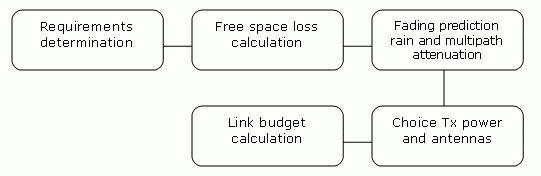

This chapter explains the individual steps and an example of link design is given at the end.

NOTE – For quick reference you can use the calculator on www.racom.eu

As the electromagnetic waves travel through open space they are attenuated. This attenuation is described as Free-space Loss. This loss depends on the distance travelled by signal and its frequency. Longer distance means greater attenuation and higher frequency means greater attenuation. Free-space loss can be calculated thus:

*FSL* = 32.44 + 20log *f*
+ 20log *D*

Where:

FSL | free-space loss (dB) |

f | frequency of the emitted signal (MHz) |

D | length of the link (km) |

To goal is to design a link so that the received signal is
stronger than the receiver’s sensitivity at the required BER
(typically 10^{-6}). Since every radio signal
in earth atmosphere is subject to fading, some difference between
received signal level under normal circumstances and receiver
sensitivity is needed to serve as a fade margin. The minimum value of
fade margin can be calculated from the requirement for link
availability (e.g. 99.999% of the time). The required margin depends
on the length of the link as well as other factors such as rain
attenuation, diffraction and multipath propagation.

If we ignore the additional loss along the path, the received signal strenght can be calculated using the formula for signal propagation in free space as follows:

*P _{R}* =

*P*+

_{T}*G*+

_{T}*G*–

_{R}*FSL*

Where

P_{R} | received power level (dBm) |

P_{T} | transmitted power (dBm) |

G_{T} | transmitting antenna gain (dBi) |

G_{R} | receiving antenna gain (dBi) |

FSL | free space loss (dB) |

P_{R} must be:

*P _{R}* >

*P*

_{S}Where:

P_{S} | receiver sensitivity (dBm) |

The receiver’s sensitivity defines the minimum level of the
received signal at which the receiver is able to process the received
signal without losses or affecting the transmitted data (for BER
better then 10^{-6}).

Determining sufficient fade margin is the most important step in microwave link design. If the margin is too small, the link will be unstable – as a result, sufficient availability of the link or quality of the provided services cannot be guaranteed. On the other hand, unnecessarily large margin makes the link more expensive (higher performance, larger and more expensive antennas) and increases the cost of creating the microwave link.

The following paragraphs describe the two most significant types
of attenuation – rain and multipath attenuation, which are the most
frequent along with free space loss. Mutual relation between rain and
multipath attenuation rules out the possibility that the link could be
affected by both types of attenuation at the same time – **these types of attenuation do not add up**. To
determine the fade margin it is necessary to calculate both rain and
multipath attenuation. The larger of the two types of attenuation
determines the value of fade margin. In areas with high precipitation,
rain attenuation can be expected to be more prominent. By contrast,
links located in drier climates and little inclination, will suffer
more from multipath attenuation.

FSL is not the only attenuation that influences the emitted
signal. For frequencies of about 10 GHz rain attenuation starts to
become increasingly effective. Precipitation is not identical in all
areas which is why ITU released a recommendation Rec. ITU-R PN.837-1
for splitting the world into 15 regions according to precipitation

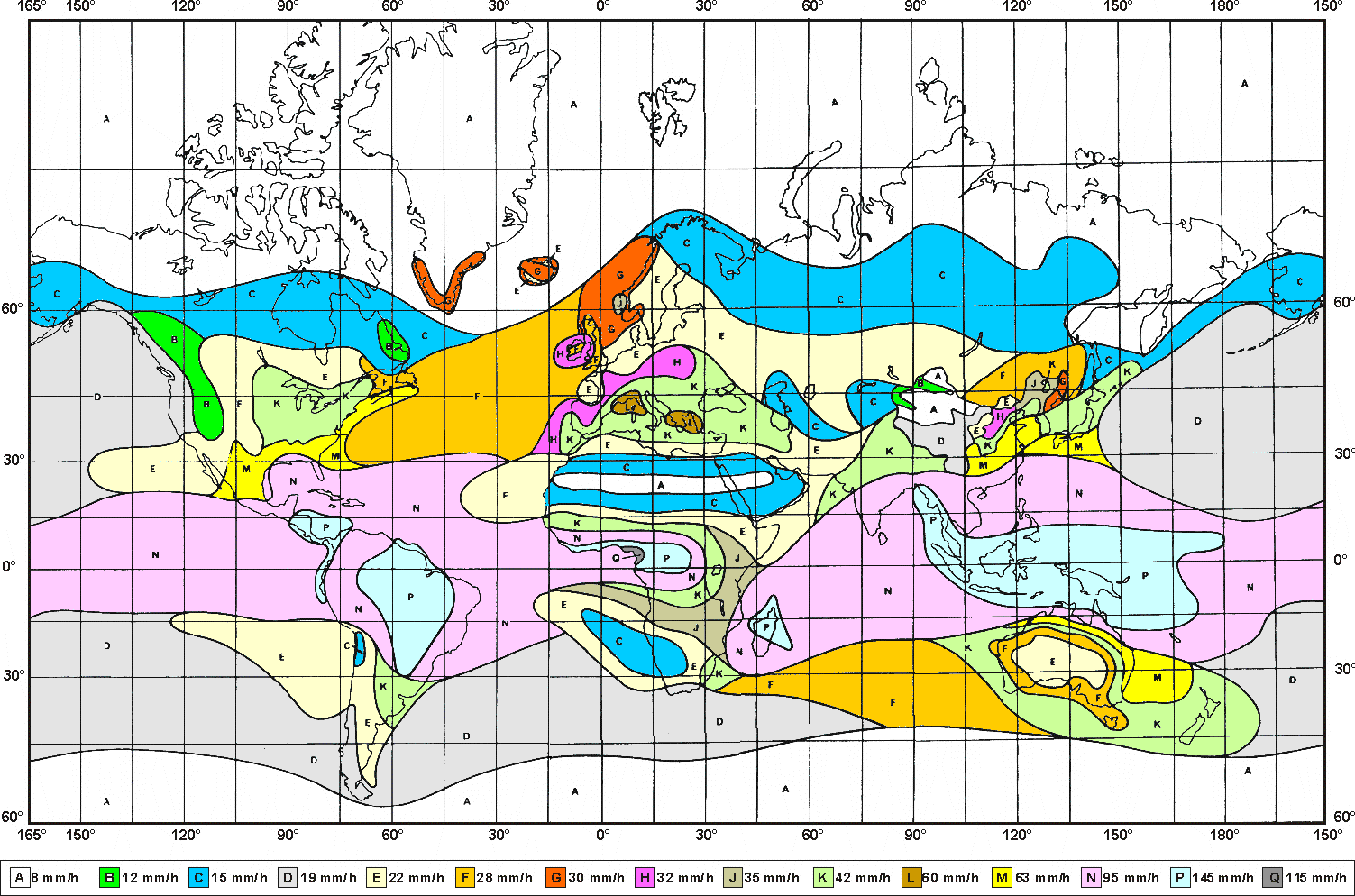

intensity see Fig. 2.1, for more
detail Appendix B, *Rain Zone Map*. In the areas with higher
precipitation greater rain attenuation must be expected and a greater
signal fade margin must be established, see the calculation of link availability.

The following properties are inherent to rain attenuation:

It increases exponentially with rain intensity

It becomes significantly larger as the distance travelled increases (>10 Km)

Horizontal polarization causes greater rain attenuation than vertical polarization

Rain outage increases dramatically with frequency and path length

Rain attenuation can be calculated using ITU-R outage model, which consists of the following:

Obtain the rain rate R_{0.01} exceeded for
0.01 per cent of the time (with an integration time of 1 min).
R_{0.01} values are defined for 15 rain zones and
different time percentages and they are given in ITU-R Recommendation
P.837.

**Tab. 2.1: Rain rate R (mm/h) ITU-R P.837**

Percentage of time (%) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

1.0 | <0.1 | 0.5 | 0.7 | 2.1 | 0.6 | 1.7 | 3 | 2 | 8 | 15 | 2 | 4 | 5 | 12 | 14 |

0.3 | 0.8 | 2 | 2.8 | 4.5 | 2.4 | 4.5 | 7 | 4 | 13 | 42 | 7 | 11 | 15 | 34 | 49 |

0.1 | 2 | 3 | 5 | 8 | 6 | 8 | 12 | 10 | 20 | 12 | 15 | 22 | 35 | 65 | 72 |

0.03 | 5 | 6 | 9 | 13 | 12 | 15 | 20 | 18 | 28 | 23 | 33 | 40 | 65 | 105 | 96 |

0.01 | 8 | 12 | 15 | 19 | 22 | 28 | 30 | 32 | 35 | 42 | 60 | 63 | 95 | 145 | 115 |

0.003 | 14 | 21 | 26 | 29 | 41 | 54 | 45 | 55 | 45 | 70 | 105 | 95 | 140 | 200 | 142 |

0.001 | 22 | 32 | 42 | 42 | 70 | 78 | 65 | 83 | 55 | 100 | 150 | 120 | 180 | 250 | 170 |

Compute specific attenuation γ_{R} (dB/km)
for the frequency, polarization, specific rain rate using ITU-R
recommendation P.838. Rain attenuation for rain rate
γ_{R0.01} can be calculated
as follows:

γ_{R0.01} =
k_{h,v} .R_{0.01}^{αh,v}

where:

k_{h,v},
α_{h,v} | constants for horizontal and vertical polarization. Constants are slightly different for each polarization, see next table according to ITU-R P.838 |

**Tab. 2.2: Constants k, α for horizontal and vertical polarization at
10, 11, 17 and 24 GHz**

k_{h} | α_{h} | k_{v} | α_{v} | |

10 GHz | 0.01 | 1.26 | 0.01 | 1.22 |

11 GHz | 0.02 | 1.21 | 0.02 | 1.16 |

17 GHz | 0.06 | 1.09 | 0.07 | 1.01 |

24 GHz | 0.14 | 1.01 | 0.14 | 0.96 |

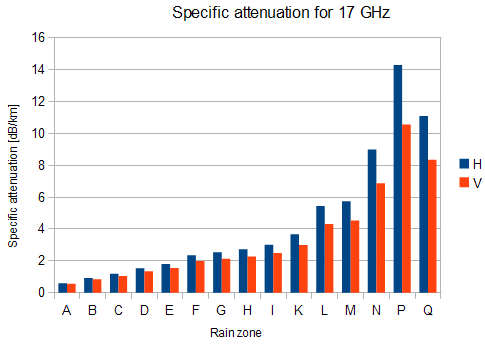

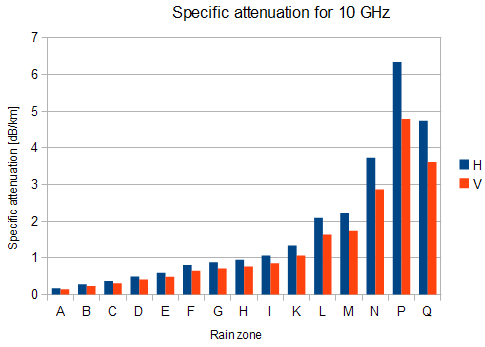

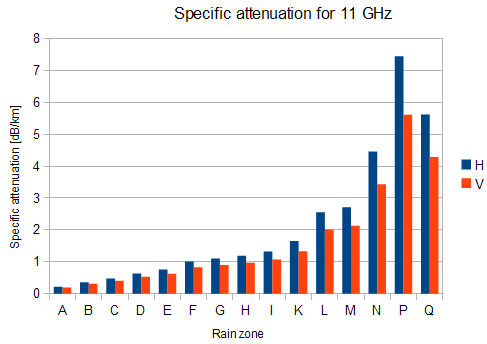

Fig. 2.2 shows that rain attenuation is greater for horizontal polarization. In regions with higher precipitation the difference in attenuation is more marked. The microwave links RAy17 and RAy24 uses both polarizations, hence the need to consider worse of the two, i.e. horizontal polarization. When ACM is active we recommend using horizontal polarization on the direction with lower data traffic (typically up-link).

Multipath fading is another dominant fading mechanism. A reflected wave causes a phenomenon known as multipath, meaning that the radio signal can travel multiple paths to reach the receiver. Typically, multipath occurs when a reflected wave reaches the receiver at the same time in opposite phase as the direct wave that travels in a straight line from the transmitter.

Multipath propagation gives rise to two kinds of signal degrading effects, i.e., flat fading and frequency selective fading. Flat fading is a reduction in input signal level where all frequencies in the channel of interest are equally affected and is dependent on path length, frequency, and path inclination. In addition, it is strongly dependent on the geoclimatic factor K.

To calculate the probability of outage due to multipath propagation of microwave links ITU-R probability model can be used which describes a single frequency (or narrowband) fading distribution suitable for large fade depths A in the average worst month in any part of the world (based on ITU-R P.530-14) and for detailed link design is given as follows [1]:

*P _{0}* =

*Kd*

^{3.4}(1+|

*ε*

*|)*

_{P}^{-1.03}f

^{0.8}×10

^{0.00067hL-A/10 }

where:

d | link distance (km) |

f | frequency (GHz) |

h_{L} | altitude of lower antenna (m) |

A | fade depth (dB) |

K | is geoclimatic factor and can be obtained from: |

*K* =
10^{-4.6-0.0027dN1}

The term dN1 is provided on a 1.5° grid in latitude and longitude in ITU-R Recommendation P.453. The data are available in a tabular format and are available from the Radiocommunication Bureau (BR). E.g. in Central Europe the values dN1 range from -242 to -362.

From the antenna heights h_{e} and
h_{r} (meters above sea level), calculate the
magnitude of the path inclination │ε_{P}│ (mrad)
using the following expression:

where:

d | link distance (km) |

h_{r},
h_{e} | antenna heights above sea level (m) |

The position of obstacles between points of the bridge can significantly influence the quality of the microwave link. The radio signal doesn’t only radiate along the line of sight, but also in the area around it, i.e. in the so-called 1st Fresnel zone. Within this zone 90 % of the energy is transmitted between the transmitter and receiver antenna. This space has the shape of an ellipsoid. If it is disturbed the link has worse transmission properties and a higher quality antenna is required. For this reason the position of the antenna can be just as important as its height above ground. 60 % of the 1st Fresnel zone is considered as the most important.

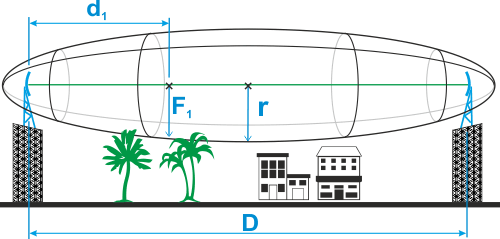

The general equation for calculating the first Fresnel zone radius at any point P in between the endpoints of the link is the following:

Where:

F_{1} | first Fresnel Zone radius in metres |

d_{1} | distance of P from one end in metres |

d_{2} | The distance of P from the other end in metres |

λ | wavelength of the transmitted signal in metres |

The cross sectional radius of each Fresnel zone is the highest in the center of link, shrinking to a point at the antenna on each end. For practical applications, it is often useful to know the maximum radius of the first Fresnel zone. From the above formula calculation of the first Fresnel zone can be simplified to:

where:

r | max radius of first Fresnel zone (m) |

D | total link distance (km) |

f | frequency (GHz) |

**Tab. 2.3: 60 % of the 1st Fresnel zone**

Length of link
D | Radius
of zone r for frequency | ||

11 GHz | 17 GHz | 24 GHz | |

0,5 km | 1.10 m | 0.89 m | 0.75 m |

1 km | 1.56 m | 1.25 m | 1.06 m |

2 km | 2.21 m | 1.77 m | 1.50 m |

4 km | 3.13 m | 2.50 m | 2.12 m |

6 km | 3.84 m | 3.07 m | 2.60 m |

8 km | 4.43 m | 3.54 m | 3.00 m |

10 km | 4.95 m | 3.96 m | 3.35 m |

15 km | 6.06 m | 4.85 m | 4.10 m |

20 km | 7.00 m | 5.60 m | 4.74 m |

50 km | 11.07 m |

Link parameters:

Link distance: 4 km

First antenna height above sea level: 295 m

Second antenna height above sea level: 320 m

Location: Central Europe (rain zone H, refraction gradient dN1= −300)

Transmission requirements:

Required data rate: >160 Mbps

Required availability: 99.99 %

RAy parameters:

17 GHz

161 Mbps -> Modulation 16QAM; BW=56 MHz; P

_{S}(BER 10^{-6})= −79 dBmTx power +5 dBm (max. Tx power)

Antenna gain:

30 cm … 32.2 dBi

60 cm … 37.8 dBi

99 cm … 42 dBi

Step 1 –
Free space loss calculation | ||

FSL = 32.44 + 20log
f + 20log D = 32.44 +
20log17.2·10^{3} + 20log4 = 129.1
dB | ||

Step 2 –
Rain attenuation | ||

For 99.99% availability in rain
zone B the rain rate is R_{0.01}=32 (see
Fig. 2.1) | ||

For f=17 GHz
k_{h}=0.06146;
α_{h}=1.0949;
k_{v}=0.06797;
α_{v}=1.0137 | ||

Vertical polarization: | ||

γ_{R0.01} =
k_{v} .R^{αv}_{0.01}
= 0.07 · 32^{1.01} = 2.32 dB/km =>
for 4km distance 9.3 dB | ||

Horizontal polarization: | ||

γ_{R0.01} =
k_{h} .R^{αh}_{0.01}
= 0.06 · 32^{1.09} = 2.62 dB/km =>
for 4km distance 10.5 dB | ||

Step 3 –
Attenuation due to multipath propagation | ||

We have to find required fade margin for reliability of the link 99.99 percent. | ||

Path inclination: | ||

The percentage of time that fade depth A (dB) is exceeded in the average worst month is calculated as: | ||

Kd^{3.4}(1+|ε|)_{P}^{-1.03}f^{0.8}×10^{0.00067hL-A/10
} | ||

P =
_{0}10^{-4.6-0.0027×(-300)}×4^{3.4}(1+|6.25|)^{-1.03}17.2^{0.8}×10^{0.032×10-0.00067×295–A/10} | ||

P =
_{0}0.022871×10^{-0.19765–A/10} | ||

For reliability 99.99% is
P_{0}=0.01 we get exponential function for
A: | ||

| ||

The minimum fade margin required to suppress multipath fading on this link would be 4 dB. | ||

Step 4 –
Link budget calculation | ||

Calculation in steps 2 and 3 determines the minimum fade margin required for stable link operation as 11 dB (rain attenuation is dominant). If you use the maximum performance of antenna with diameter of 30 cm, complete the radio formula as follows: | ||

| ||

Fade margin: | ||

| ||

The resulting fade margin is larger than the required 11 dB. Current legislation in the Czech Republic allows maximum EIRP of +20, i.e. the sum of transmit power and antenna gain at the transmitter can be 20 dB at the most. For 99cm antennas, TX power can be up to 20 – 42 = -22 dB, the resultant equation is as follows: | ||

| ||

Fade margin: | ||

A =
|P_{S}| −
|P_{R}| = 79 − 67.1 =
11.9 dB | ||

Fade margin is now only 12 dB which corresponds to link availability > 99.99% of the time in a year. | ||

Technical literature often gives the minimum fade margin of 20 dB. For very long links (more than 10 km) fade margin will, indeed, be approximately 20 dB. For shorter links, however, such large margin is not necessary. It is helpful to first conduct the calculation above to receive an idea of the attenuation affecting the link. | ||

The
result | ||

To achieve the required transmission capacity and link availability for link distance of 4 km, transmit power -22 dBm and 99 cm antennas were selected for both sides of the link. |

Sources for Chapter Chapter 2, *Implementation Notes*:

[1] Lehpamer, H.: Microwave transmission network, Second edition, ISBN: 0071701222, McGraw-Hill Professional, 2010.

ITU-R recommendation used:

ITU-R P.453-10 – The radio refractive index: its formula and refractivity data

ITU-R P.530-14 – Propagation data and prediction methods required for the design of terrestrial line-of-sight systems

ITU-R P.837-1 and 6 – Characteristics of precipitation for propagation modelling

ITU-R P.838-3 – Specific attenuation model for rain for use in prediction methods

ITU-R P.310, ITU-R P.526, ITU-R P.676, ITU-R P.834, ITU-R P.835
