5. Dimensions, drawings, manufacturing code

5.1. Dimensional Diagram

There are 4 versions of radio modems in terms of mounting:

D

– Horizontal body, DIN rail mount, e.g. RE410D

H

– Horizontal body, mount on a plate, e.g. RE410H

R

– Vertical body, DIN rail mount, e.g. RE410R

S

– Vertical body, mount on a plate, e.g. RE410S

Basic type is D. Other types available to order.

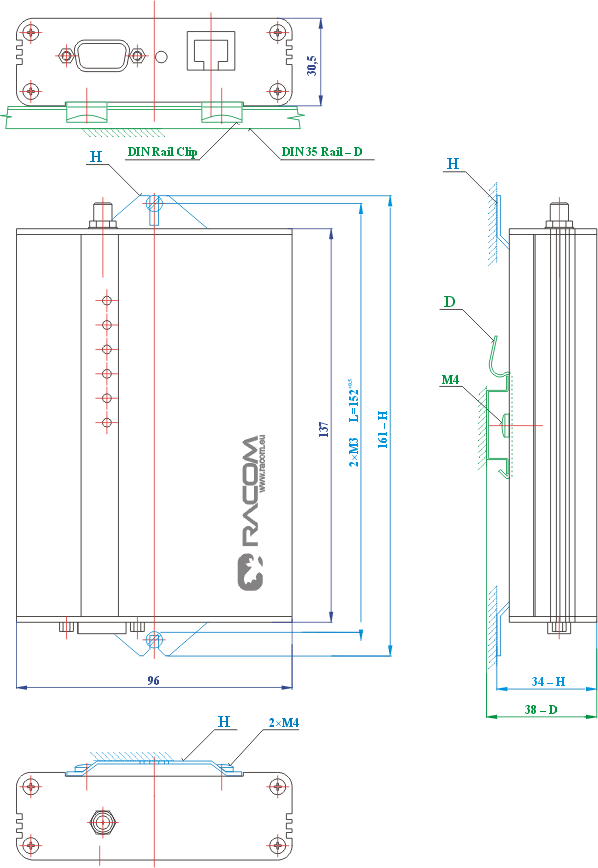

Mounting dimensions of the radio modem - version D and H

Fig. 5.1: Mounting dimensions of the radio modem – version D and H

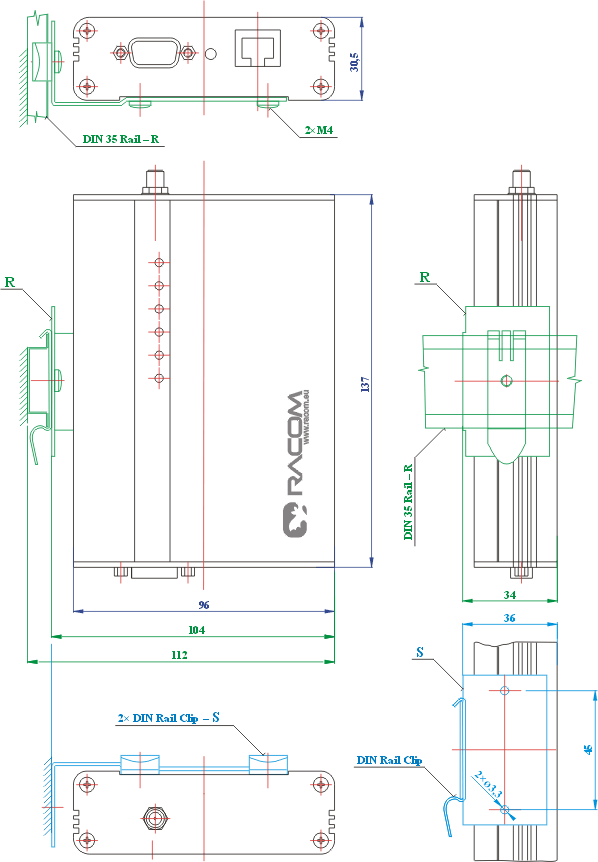

 Mounting dimensions of the radio modem - version R and S

Fig. 5.2:  Mounting dimensions of the radio modem – version R and S

5.2. Labelling of Radio Modems

is described in the next table:
