RACOM also produces most of the mechanical parts for its products. After the expansion and modernization of our mechanical production in 2022, we have spare capacity in the new hall, which we offer for use by other companies. This gives them the unique opportunity to use our state-of-the-art equipment, for example, to machine aluminium alloys to the highest precision.

Datasheet

Mechanical production

Datasheet

Technology

CNC machining
Cutting, Grinding
Ultrasonic washing
Laser marking

CNC MACHINING | OTHER | GALLERY | GET QUOTE

Technology

CNC machining
Cutting, Grinding
Ultrasonic washing
Laser marking

CNC MACHINING	OTHER
GALLERY	GET QUOTE

Production hall

Completed in 2022
1.600 m²
Air-conditioned machining shop ± 3 °C
Investment €2.8m

CNC MACHINING | OTHER | GALLERY | GET QUOTE

Production hall

Completed in 2022
1.600 m²
Air-conditioned machining shop ± 3 °C
Investment €2.8m

CNC MACHINING	OTHER
GALLERY	GET QUOTE

Quality

In-process gauging on CNC machines
3D measurement, 0.003 mm
2D microscope, 0.001 mm
ISO 9001, ISO 14001

CNC MACHINING | OTHER | GALLERY | GET QUOTE

Quality

In-process gauging on CNC machines
3D measurement, 0.003 mm
2D microscope, 0.001 mm
ISO 9001, ISO 14001

CNC MACHINING	OTHER
GALLERY	GET QUOTE

Experience

Designing mechanical parts since 1989
Own mechanical production since 1995
CAD/CAM – SolidWorks, NX
Product design consultation

CNC MACHINING | OTHER | GALLERY | GET QUOTE

Experience

Designing mechanical parts since 1989
Own mechanical production since 1995
CAD/CAM – SolidWorks, NX
Product design consultation

CNC MACHINING	OTHER
GALLERY	GET QUOTE

We are experts in the precision machining of aluminium, because for 15 years we have been producing microwave units with parts demanding extreme precision, at the limits of machining techniques. We machine aluminium castings, into which we mount our radio modems and microwaves. We make metal shells for the installation of our cellular routers. We can of course also do all other operations for the production of mechanical parts, including their design and construction.

Take advantage of the opportunity to have your mechanical parts manufactured in the same quality and precision as RACOM products. Our devices have MTBFs exceeding 100 years and are installed in more than 120 countries, from the poles to the equator.

CNC MACHINING | OTHER | GALLERY | GET QUOTE

CNC machining

Milling

We specialize in machining aluminum with high precision, but we can also machine other materials. We currently have three CNC milling machines from the Czech company Kovosvit. We have enough capacity in our machining shop, air-conditioned (± 3 ^oC) to allow us to achieve extreme precision, and we will be adding further CNC machines.

Kovosvit MCV 750 Sprint

Machining area: 750 × 500 × 500 mm
Number of axes: 3+1
Spindle rpm: 18,000/min
Number of tooling positions: 24

Kovosvit MCV 750 Sprint

Machining area: 750 × 500 × 500 mm
Number of axes: 3+1
Spindle rpm: 18,000/min
Number of tooling positions: 24

Kovosvit MCV 750 Rapid

Machining area: 750 × 500 × 500 mm
Number of axes: 3
Spindle rpm: 24,000/min
Number of tooling positions: 24

Turning

We specialize in machining aluminium with high precision, but we can also machine other materials. We currently have one Doosan CNC lathe. We have enough capacity in our machining shop, air-conditioned (± 3 ^oC) to allow us to achieve extreme precision, and we will be adding further CNC machines.

DOOSAN LYNX 220 LMA

Maximum turning diameter: 250 mm
Maximum length of machined part: 510 mm
Maximum spindle pass: 51 mm
Maximum spindle speed: 6,000 /min
Number of cutting tools: 12 with live tool option
Support tailstock
XZC axes

Finishing

For parts with a high emphasis on precision, we perform fine cleaning and inspection under a magnifying glass with two to eight times magnification.

Magnifier Vision Mantis compact

Enlargement: 2× – 8×
Wide-volume stereo magnifier with large-area lens

Other

Washing and drying

Most of the parts for our products need to be extremely clean, which is why we are equipped with several washing machines.

In addition to the degreasing washing machine, we also have two ultrasonic cleaners available. After the washing process, we dry all products in an industrial chamber dryer.

Washing machine Trefal MH-800 JR

Washing cage dimensions: 800 mm
Maximum wash height: 500 mm
Carrying capacity: 200 kg

Ultrasound cleaner UCEI 95.02

Washing cage dimensions: 680 × 450 × 350 mm

Ultrasound washer KRAINTEK K-40

Washing cage dimensions: 430 × 330 × 240 mm

Industrial chamber drying furnace 101-3

Inner chamber size: 580 × 490 × 690 mm
Adjustable temperature 0 – 300 °C

Cutting

Whether you supply us with the material or we provide it, it will probably need to be cut, and of course we are equipped for that.

Band saw Pilous ARG 300 plus E.H.

Maximum cutting capacity bar stock Ø 300 mm
Maximum cutting capacity profile 360 × 190 mm
Adjustable angle cuts 0° to +60°, 0° to -45°
Used for cutting aluminium alloys

Band saw Pilous ARG 230

Maximum cutting capacity bar stock Ø 220 mm
Maximum cutting capacity profile 270 × 150 mm
Adjustable angle cuts 0° to +60°, 0° to -45°
Used for cutting iron

Grinding

If necessary, we can grind or brush mechanical parts. We have belt and disc grinders available.

Pedestal grinding machine NS MAQUINAS PL-40-ZP

Max. dimensions of disc / brush Ø 500 × 100 mm
Max. sanding belt dimensions 50 × 3500 mm
Used for grinding from fixed arm

Quality control

We produce mechanical parts for our needs with a precision of 0.001 mm and, of course, our quality control measuring instruments correspond to this.

3D measuring machine TESA MICRO-HITE 3D

Measuring range: 460 × 510 × 420 mm
Measurement precision: 0.003mm
Located in a special air-conditioned room with a temperature tolerance of ± 1 °C

Measuring microscope Vision SWIFT PRO DUO

Measuring range 100 × 200 mm
Enlargement: 10×, 20×, 50×
Resolution: 0.001mm
2-axis dual non-contact measuring system with patented optical projection technology or video camera

Surface finishing

One of the few things RACOM does not do in-house is the surface treatment of our products. However, we have been cooperating with proven suppliers of these technologies for a long time. In cooperation we are able to provide powder coating (komaxit), or galvanic surface treatment (zinc coating, anodizing, etc.)

If you are interested, we are able to provide for comprehensive delivery and have your products varnished or otherwise surface treated.

Laser marking

We can mark or describe your parts or products with a laser from the Czech company Medicom.

Marking laser MEDICOM LASER SCRIPT LS-100

Marking field 160 × 160 mm

Assembly

If necessary, we can manually screw together or otherwise assemble your parts.

We also have an antistatic workplace where we assemble final products comprising PCBs and individual mechanical parts.

Gallery

Examples of our products

Electrical equipment prototype shell

Production from block stock
Product assembly dimensions 200 × 205 × 75 mm

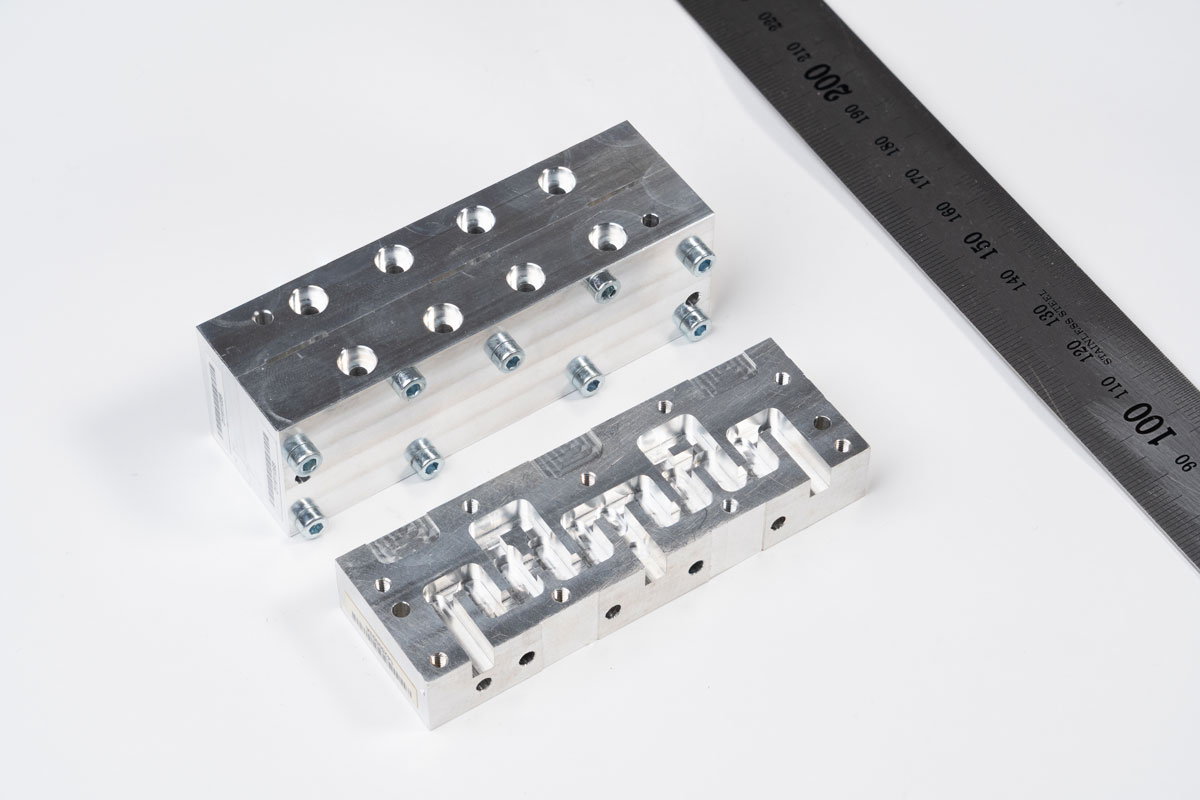

Microwave unit matrix board

High concentricity requirements when machining from the 1st and 2nd positions
Second machining position refined by using a probe in an automatic cycle
Precision achieved in the waveguide area is ± 0.007 mm

Waveguide reduction to microwave unit

Production from bar stock
Part made on a lathe using machine tools
Precision achieved in the waveguide area is ± 0.01 mm

Duplex filter for 18 GHz

Complete product dimensions 90 × 30 × 18 mm
High demands on the precision of cell depth and assembly
The depth of each chamber differs by tenths of a millimetre with a machining precision of ± 0.007 mm
Production including assembly

Part of the set for measuring 80 GHz microwave units

Product assembly dimensions 167.5 × 40 × 35 mm
Extreme precision fitting requirement for waveguide parts (grooves)
Cross-section of waveguide (grooves) 1.55 × 1.55 mm
Production including assembly with assembly precision ± 0.008 mm

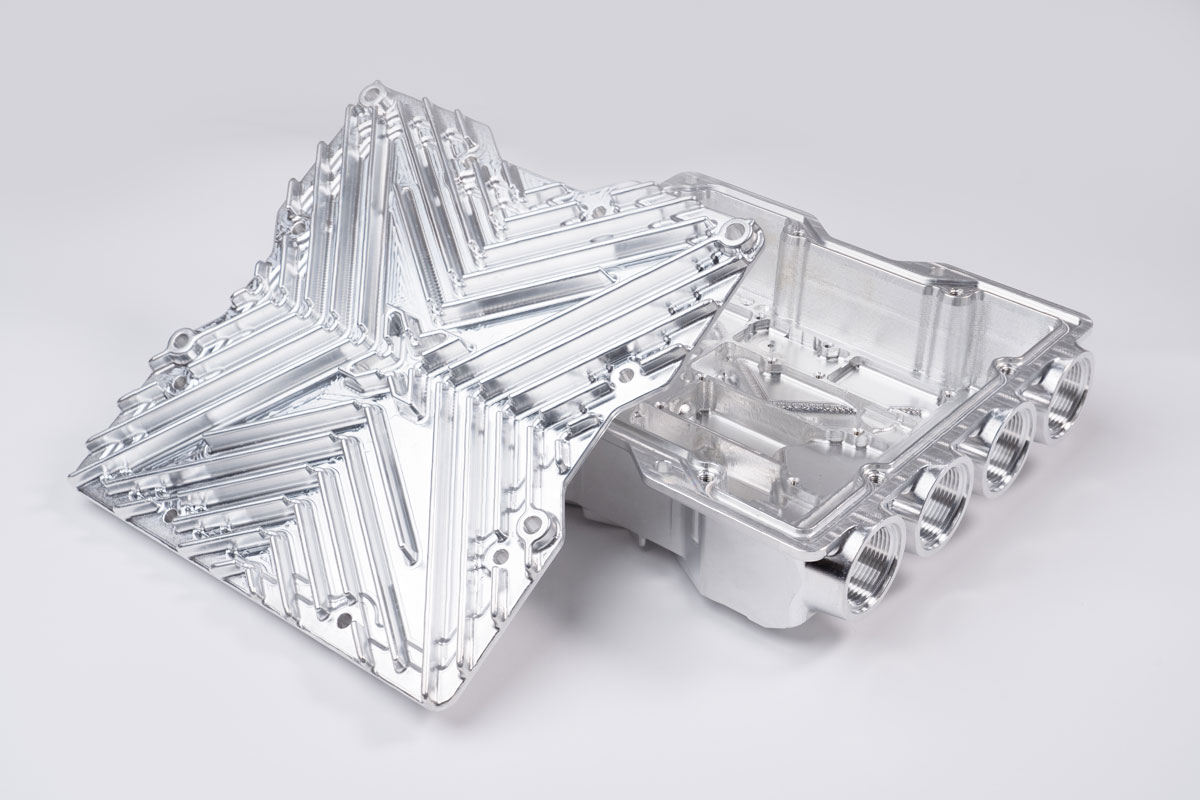

Radio modem casing part

Product dimensions 125 × 184 × 41 mm
Machining of die casting
Front holes machined after product painting

Filter for microwave unit 17 GHz

Product assembly dimensions 34 × 25 × 24 mm
High concentricity requirements when machining from the 1st and 2nd positions
Second machining position refined by using a probe in an automatic cycle
Achieved machining precision ± 0.01 mm
Production including assembly

Part of the 80 GHz antenna prototype

Production from bar stock
Product dimensions Ø 48 × 70 mm
High requirement for product alignment and concentricity

Part of the set for measuring 80 GHz microwave units

Product assembly dimensions 61,5 × 30 × 60 mm
Extreme precision requirement of waveguide parts (grooves)
Cross-section of waveguide (grooves) 1.55 × 1.55 mm
Production including assembly with assembly precision ± 0.008 mm

10 GHz duplex filter

Complete product dimensions 165 × 24 × 34 mm
The depth of each chamber varies by tenths of a millimetre
High demands on the precision of cell depth and assembly
The depth of each chamber differs by tenths of a millimetre with a machining precision of ± 0.007 mm

Transformer microwave unit 18 GHz

Production from bar stock
Product dimensions Ø 49 × 27 mm
High concentricity requirements when machining from the 1st and 2nd positions
Precision achieved in the waveguide area is ± 0.008 mm

Part of the duplex filter for 80 GHz

Complete product dimensions 84 × 21.5 × 8 mm
High demands on the precision of cell depth and assembly
The depth of each chamber differs by tenths of a millimetre with a machining precision of ± 0.007 mm
Cross-section of waveguide (grooves) 1.55 × 1.55 mm
