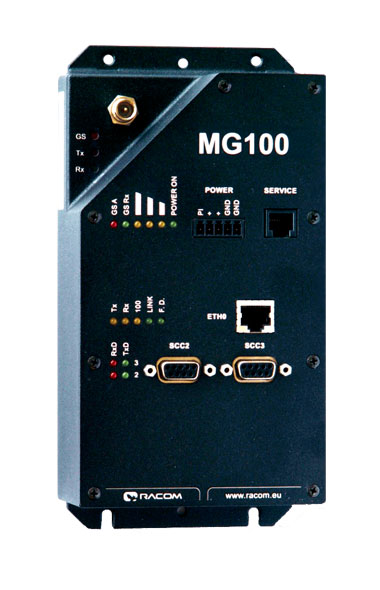

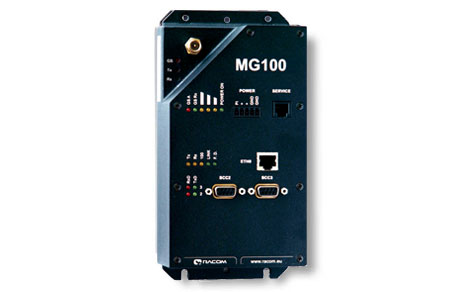

MG100

https//www.racom.eu/eng/products/gprs-modem-mg100.html

Highlights

  • SCADA protocols on COM
  • Hybrid networks
  • Acknowledged UDP
  • Modular– 4 interface slots
  • Network management SW
  • Vibration and shock hardened
  • MR400 HW & SW compatible

Some applications are not really mission-critical and it would not be economical to build a private radio data network. In such cases, data transfer over GPRS may be the right option, however an industry application requires industry-grade equipment. The RACOM MG100 router brings such industry-level robustness and reliability into the environment of public networks.

MG100 is a member of the MORSE product family, hence it is fully compatible with MR400 radio modems on user interfaces and it can be managed using the same software tools, the RANECnetwork management
software including. Thanks to this full compatibility, MORSE hybrid networks, where data transfer over Radio channel and GPRS is combined, can easily be built using MG100 routers and MR400 radio modems.

* No longer mass produced; available on request.

Features

  • More than 70 protocols – Modbus, IEC101, DNP3, Comli, DF1, Profibus, Modbus TCP, IEC104…
  • Cache mode – speeds up polling protocols
  • SCADA serial protocol addresses are mapped to MG100 addresses
  • Implementation is 100% compatible with MR400 Hybrid networks
  • HW and SW compatible with MR400 radio modems
  • The same tools for configuration and maintenance
  • Combination of GSM (MG100) and Radio channel (MR400) within one user application
  • A single application / user protocol can operate over any combination of GSM (MG100) and Private radio (MR400) networks.

4 slots for modules:

  • Ethernet
  • 2x RS232, 1x RS232, 1x RS232i, 1x RS422/485i
  • I/O – 2×DI, 2×DO, 2×AI, 2×AO
  • Dedicated to MORSE system
  • No Linux
  • No Windows
  • Setr – special management application (Windows/Linux)
  • The most robust and fast remote configuration and diagnostic – only the necessary data is transferred
  • Monitoring of User interfaces, either locally or remotely
  • On line as well as historical statistics for all interfaces
  • Control and diagnostics detail
  • Client – Server architecture, unlimited number of clients
  • Server maintains database of statistic data from all/selected units
  • Intelligent data collection algorithm avoids conflicts with user traffic
  • Unlimited number of clients (Windows/Linux)
  • Graphical display of statistical data over an arbitrary period
  • Network topology displayed on a map background
  • Network planning tools – signal coverage calculation using digital elevation model
  • Convenient access to MORSE utility programs
  • Proprietary protocol: UDP/IP used over GPRS, however each packet is acknowledged
  • CRC32 data integrity control
  • Proprietary data compression
  • Blowfish 160 encryption
  • Netlock – enables/disables remote access to a unit independently for threelevels of users
  • Every single unit tested in a climatic chamber as well as in real traffic
  • Military or industrial components are used
  • Industrial die-cast aluminum case
  • -30 +55 °C certified
  • Vibration and shock resistant
  • Sleep mode – 2.5 mA, controlled via a digital input
  • DIN rail, flat or 19” rack mounting
  • CE approval
  • Vibration – EN 61 373

Specifications

Radio parameters
Cellular Technology / Frequencies
MG100x0 – (obsolete, not in production) GPRS 900/1800 MHz
MG100x1 – GPRS GPRS 850/900/1800/1900 MHz
MG100x2 – (obsolete, not in production) GPRS/EDGE 850/900/1800/1900 MHz
UMTS 2100 MHz (Europe)
MG100x3 – (obsolete, not in production) GPRS/EDGE 850/900/1800/1900 MHz
UMTS/HSDPA 850/1900/2100 MHz
MG100x4 – (obsolete, not in production) GPRS/EDGE 850/900/1800/1900 MHz
UMTS/HSDPA/HSUPA 850/1900/2100 MHz
Electrical
Primary power 13.8 VDC (10.8 – 15.6 V)
Rx 200 mA (Eth +40 mA, I/O +50 mA) /13.8 VDC
Tx GPRS 260 mA (Eth +40 mA, I/O +50 mA) /13.8 VDC
Tx UMTS 290 mA (Eth +40 mA, I/O +50 mA) /13.8 VDC
Sleep mode 2.5 mA
Interfaces
4 slots Ethernet, 2x RS232, 1x RS232, 1x RS232i, 1x RS422/485i, I/O – 2×DI, 2×DO, 2×AI, 2×AO
Environmental
Temperature -30 to +65 °C
Humidity 5 to 95% non-condensing

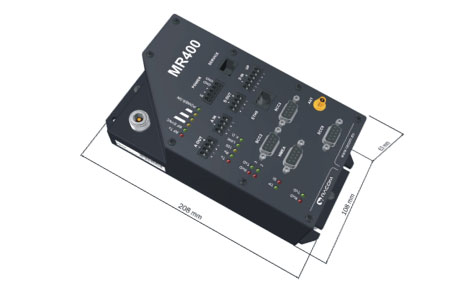

Mechanical
Casing Rugged die-cast aluminium
Dimensions 208 W × 108 D × 63 H mm (8.19 x 4.25 x 2.48 in)
Weight 1.2 kg (2.65 lbs)
SW
User protocols on COM More than 70 protocols – Modbus, IEC101, DNP3,Comli, DF1, Profibus
User protocols on Ethernet Modbus TCP, IEC104…
Diagnostic and Management
Radio link testing
Statistic Rx/Tx packets on User interfaces, PPP interface
Network management RANEC software
Approvals
Radio parameters CE
Use in automotive environments ECE Regulation 010.00
Vibrations EN 61 373

Applications

  • SCADA & Telemetry
  • Water
  • Oil & Gas
  • Electricity
  • Smart grid
  • POS & ATM
  • Lottery
  • Weather
  • Transportation
  • References

Since GPRS is a public service, MG100 should not be used for mission-critical applications.

MORSE Utilities RANEC

MG100 is a part of the MORSE system. Description of the MORSE system itself,
the Utilities for configuration and diagnostics
and RANEC, the network management software, you can find on MR400 product page.

Download

Datasheets
Datasheet MG100 - A3 MG100_data_A3.pdf612 kB20.01.2015
Datasheet MG100 - A4 MG100_data.pdf1 553 kB05.08.2011
Product codes
MG100 – GPRS Router mg100_znac_a.pdf18 kB23.07.2014
HW manuals
MG100 – GPRS Router mg100-m-en.pdf1 326 kB15.09.2015
