Product archive

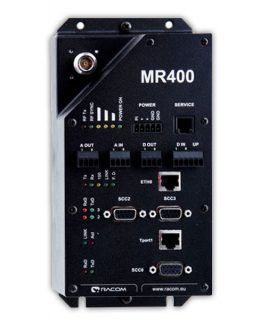

MR400
https//www.racom.eu/eng/products/radio-modems-mr400.html
MR400 is a well proven radio modem, on the market for over a decade and undisputably well established. Tens of thousands of units serve reliably around the world, from the poles to the equator.
MR400 uses a sophisticated anti-collision protocol on the Radio channel. Its unbeatable network performance is boosted by the unique implementation of proprietary SCADA protocols from all significant vendors on the SCADA market.
Thanks to MR400 extraordinary intelligence, speed and switching time, they are suitable for all types of networks where emphasis is placed on speed and reliability, such as SCADA & Telemetry for utility distributions (water, electricity, oil&gas), SmartGrid power networks, Transaction networks like lottery, ATM or POS, mobile networks including mission-critical fleet management and many other applications.
Features
- 22 kbps / 25 kHz
- 11 kbps / 12.5 kHz
- Polling, Report-by-exception, Mesh
- Network throughput for 22 kbps/25 kHz:
- 600 Bytes/sec. in collision environment within one radio coverage area
- 10 packets/sec. (for packets shorter than 60 Bytes)
- 15 kbps user data rate for point-to-point link
- More than 70 protocols – Modbus, IEC101, DNP3, Comli, DF1, Profibus, Modbus TCP, IEC104…
- Cache mode – speeds up polling protocols
- SCADA serial protocol addresses are mapped to MR400 addresses
- TCP (UDP) protocols (e.g. IEC104) are handled transparently
- Each packet is acknowledged on Radio channel
- Sophisticated anti-collision protocol on Radio channel allows for report by exception from remotes and simultaneous multi-master polling
- Dedicated to MORSE system
- No Linux
- No Windows
- Extremely fast booting (3 sec.)
5 slots for modules:
- Ethernet
- 2× RS232, 1× RS232, 1× RS232i, 1× RS422/485i
- I/O – 2×DI, 2×DO, 2×AI, 2×AO,
- 160, 300, 400 MHz bands, no direct line of sight required
- Carrier output power 0.1–5 W or 0.1–25 W
- Exceptional data sensitivity: -105 dBm / 22 kbps / 25 kHz
- Max. distance more than 50 km
- High resistance to multi path propagation and interference (CPFSK modulation)
- Every modem can work simultaneously as a repeater
- Hybrid networks: – any IP network (Internet,3G/GPRS etc.) can interconnect MR400 units
- Unlimited number of radio hops
- Mobile mode in Radio protocol
- Every stationary unit can serve simultaneously as a Base station for mobiles
- Cell architecture: automatic instant hand-over, each individual packet from mobile is delivered via the best Base station at the moment
- Central MR400 maintains a list of “mobile-base” connections, updated with every packet, to enable communication from the centre to mobiles
- Setr – special management application (Windows/Linux)
- The most robust and fast remote configuration and diagnostics – only the necessary data is transferred
- Monitoring of User interfaces and Radio channel, either locally or remotely
- On line as well as historical statistics for all interfaces and Radio channel
- Configuration and diagnostics – detail
- Client – Server architecture, unlimited number of clients
- Server maintains database of statistic data from all/selected units
- Intelligent data collection algorithm avoids conflicts with user traffic
- Unlimited number of clients (Windows/Linux)
- Graphical display of statistic data over arbitrary period
- Network topology displayed on a map background
- Network planning tools – signal coverage calculation using digital elevation model
- Convenient access to MORSE utility programs
- Licensed radio bands
- FEC, interleaving, proprietary data compression
- CRC32 data integrity control on Radio channel
- Proprietary protocol on Radio channel with packet acknowledgement
- Blowfish encryption with SHA1 and 160bit symmetric keys
- Firewall – address filtering
- Password-protected access
- https web interface
- SSL certificate up to 2048 bits: even your own one
- Every single unit tested in a climatic chamber as well as in real traffic
- Military or industrial grade components are used
- Industrial die-cast aluminium case
- Operating temperature -30 to +70 °C (-22 to +158 °F)
- Vibration and shock resistant
- Sleep mode – 2.5 mA, controlled via a digital input
- Power down – unit boots within 3 sec. after power up
- DIN rail, flat or 19” rack mounting
- CE, FCC approvals
- Vibration – EN 61 373
Specifications
| Radio parameters | |||||||||
| Types 1) |
|
||||||||
| Tuning range | 3.2 MHz | ||||||||
| Channel spacing 2) | 12.5 / 25 kHz | ||||||||
| Frequency stability | ±1.0 ppm | ||||||||
| Modulation | 4CPFSK | ||||||||
| Data rate | 10.84 kbps / 12.5 kHz 21.68 kbps / 25 kHz |
||||||||
| Carrier output power 2) | 0.1 W–5 W; 0.1 W–25 W | ||||||||
| Sensitivity for BER 10e-6 | -110 dBm / 10.84 kbps / 12.5 kHz -105 dBm / 21.68 kbps / 25 kHz |
||||||||
| Electrical | |||||||||
| Primary power | 13.8 V (10.8–15.6 V) | ||||||||
| Rx 3) | 380 mA (Eth +40 mA, I/O +50 mA) | ||||||||
| Tx 3) | 1.6 A / 1 W; 2.0 A / 5 W; 5.5 A / 25 W | ||||||||
| Sleep mode | 2.5 mA | ||||||||
| Interfaces | |||||||||
| 5 slots | Ethernet, 2× RS232, 1× RS232, 1× RS232i, 1× RS422/485i, I/O – 2×DI, 2×DO, 2×AI, 2×AO | ||||||||
| Environmental | |||||||||
| IP Code (Ingress Protection) | IP40 | ||||||||
| Operating temperature | -30 to +70 °C (-22 to +158 °F) | ||||||||
| Humidity | 5 to 95% non-condensing | ||||||||
| Storage temperature | -40 to +85 °C (-40 to +185 °F) | ||||||||
| Mechanical | |||||||||
| Casing | Rugged die-cast aluminium | ||||||||
| Dimensions | 208 W × 108 D × 63 H mm (8.19 × 4.25 × 2.48 in) | ||||||||
| Weight | 1.2 kg (2.65 lbs) | ||||||||
| SW | |||||||||
| User protocols on COM | More than 70 protocols – Modbus, IEC101, DNP3,Comli, DF1, Profibus, | ||||||||
| User protocols on Ethernet | Modbus TCP, IEC104… | ||||||||
| Multi master applications | Yes | ||||||||
| Report by exception | Yes | ||||||||
| Collision Avoidance Capability | Yes | ||||||||
| Repeaters | Store-and-forward; Every unit; Unlimited number | ||||||||
| Diagnostics and Management | |||||||||
| Radio link testing | RSS, DQ, Homogenity | ||||||||
| Statistic | Rx/Tx packets on User interfaces and for User data and Radio protocol (Repeats, etc.) on Radio channel | ||||||||
| Network management | RANEC software | ||||||||
| Approvals | |||||||||
| Radio parameters | CE, FCC part 90, RSS119 | ||||||||
| Use in automotive environments | ECE Regulation 010.00 | ||||||||
| Vibrations | EN 61 373 | ||||||||
1) Availability of types and frequencies
| Type | MR160 | MR160 | MR400 |
|---|---|---|---|
| Output power (W) | 5 | 25 | 5 |
| Channel spacing (kHz) | 12.5 / 25 | 12.5 / 25 | 12.5 / 25 |
| Tuning range (MHz) | 138-163.2 | 148-163.2 | 400-450 |
| CE approval (MHz) | 135-180 | 135-180 | 350-470 |
| FCC approval (MHz) | 406-412 421-512 |
All units are supposed to be used for expansion of existing networks. They were manufactured by end of 2020.
2) HW option
3) Values depend on frequency and modem type
Applications
- Polling, Report-by-exception, Mesh
- SCADA & Telemetry
- Water
- Oil & Gas
- Electricity
- Smart grid
- POS & ATM
- Lottery
- Weather
- Transportation
- References
Accessories
The product(s) are obsolete, not under production any more.
- MRouters are special industrial computers which are included in the MORSE system in places where it is necessary to communicate between several independent IP networks with physically separated Ethernet interfaces or in cases where it is necessary to boost the hardware of other MORSE equipment (computing power, number and type of interfaces) or their firmware (special protocols and applications).MRouters are used primarily in MORSE network centres.The MC100 controller serves purposes similar to MRouters. It is made from the computer part of radio modems, hence it is fully compatible with MORSE and also provides modularity of interfaces like a radio modem.WALRUS is a virtual router made in software that emulates radio modem or controller behaviour within computers running OS LINUX.
| Type | Characteristics | |
|---|---|---|
| MRouter | MRouter-A2 | Minimum dimensions, with 2 independent Ethernet interfaces |
| Controller | MC100 | Computer part of radio modems |
| Virtual router | WALRUS | Software emulation of a radio modem (or rather of a controller) |
The product(s) are obsolete, not under production any more.
- With the extremely fast Rx/Tx switching achieved by RACOM radio modems high demands are placed on the durability and quality of the power supply. RACOM therefore develops and manufactures its own brand of high-end power supplies:
The product(s) are obsolete, not under production any more.
MORSE
MORSE is an advanced communication system based on hardware and software components developed and manufactured by RACOM:
Radio modems MR400,
Products below are obsolete, not under production any more:
GPRS/EDGE/UMTS router MG100i,
Controller MC100,
Router MRouter
Virtual router WALRUS.
MORSE communication system has been originally designed for wireless data transfer using radio channel,
however any transmission medium may be used (IP, GSM…). Because of that, MORSE can be used for all kinds of
applications from point-to-point to extensive hybrid networks.
The MORSE system is ideal for applications requiring frequent transmission of short messages with a minimum response time.
- MORSE system – description
- Mobile networks – introduction to mobile networks
- Speed of data transfer – speed and capacity in the radio channel
- Reliability – calculation of the reliability of packet delivery under various conditions
- Security – locking of radiomodem and data encryption in MORSE data network
- Remote network management – remote configuration, diagnostics and monitoring of MORSE networks
- Time synchronisation – implementation of the time synchronisation in MORSE network
- Radio vs. GPRS – a comparison of the features of the MORSE radio channel and GPRS
MORSE excels over other similar communication systems in its method of
implementation and the range of protocols offered on the user interface of MR400
radio modems and MG100 GPRS modems. There are 77 standard and company protocols
available and the implementation of others is pending upon requests from
users.
Utillities
A comprehensive set of diagnostics and configuration tools for the MORSE network. These
tools allow users to configure, diagnose and test individual components as well as whole networks,
both locally and remotely. They are available free of charge at www.racom.eu, for both Windows and Linux OS.
RANEC
RANEC is a comprehensive, modular package of HW and SW designed not only for managing and diagnosing MORSE networks, but also for their design, development and servicing:
RanecBase is a set of programs which allow users to operate a conventional Network Management Centre on the MORSE network, e.g.:
- to monitor activities in the MORSE network in real time and via RanecClient to display the immediate status of individual network points (communication status on/off, running on back-up supply, etc.)
- to send e-mails or SMS messages in case of alarms
- to periodically save statistical data from individual sites of the network (e.g. signal strength, response time, number of transferred / repeated / lost packets on all channels [serial, Ethernet, radio], internal temperature, voltage, noise, etc.) to the MySQL database
- to change the configuration of individual MORSE devices on-line
RanecAdvanced is an auxiliary module to RanecBase designed for advanced MORSE network users, particularly RACOM partners. This module integrates tools for:
- network design and development
- working with a digital terrain model
- displaying signal coverage of a territory from fixed points and mobile device
- automatic detection of the topology of a running network
- detection of radio network configuration errors (e.g. time synchronisation) and signal propagation problems
RanecClient is graphical client for managing RanecBase and RanecAdvanced, and for displaying the data provided by these modules. In a LAN environment an unlimited number of RanecClients can be started simultaneously to one RanecBase or RanecAdvanced. RanecClient is supplied for OS Windows and Linux.
MServer is a server supplied for MORSE networks. Among others all programs from the RANEC package
run on it. OS Linux and MySQL database form its base. In case when the server runs on MS Windows,
all packages can be installed in a virtual machine like (e.g. VMware).
MRemote is a remote access module for the MORSE network. It can be run within the RANEC package and can be used
for remote access to a MServer as well as other RACOM devices in MORSE networks. MRemote can be
implemented according to specific customer situations and wishes.
RANEC is not available for new deliveries.
Download
| Datasheets | |||
| Datasheet MR400 - A3 | MR400_data_A3.pdf | 1 800 kB | 11.09.2012 |
| Datasheet MR400 - A4 | MR400_data_A4.pdf | 978 kB | 11.09.2012 |
| Product codes | |||
| Narrowband radio modems - MRxxx, MDxxx | mr400_znac_a.pdf | 22 kB | 23.07.2014 |
| Wideband radio modems - MXxxx, MWxxx | mw160_znac_a.pdf | 22 kB | 23.07.2014 |
| HW manuals | |||
| Narrowband radio modems, Full-duplex - MD400, MD300, MD160 | md400-m-en.pdf | 1 006 kB | 17.04.2018 |
| Narrowband radio modems, Half-duplex - MR400, MR300, MR160, MR070 | mr400-m-en.pdf | 1 212 kB | 24.09.2019 |
| Wideband radio modems, Full-duplex - MX160 | mx160-m-en.pdf | 1 085 kB | 17.04.2018 |
| Wideband radio modems, Half-duplex - MW160 | mw160-m-en.pdf | 988 kB | 06.02.2018 |
| Approvals | |||
| E8 MR070, MR160, MR300, MR400, MD160, MD300, MD400, MX160 | homologace_E8.pdf | 340 kB | 29.10.2008 |
| MR Family EU DoC | mrfamily-d-en.pdf | 142 kB | 12.06.2017 |
| MC100 - Controler | |||
| MC100 - CE Approval | mc100-d-en.pdf | 140 kB | 01.02.2007 |
| MC100 - Leaflet | mc100-l-en.pdf | 304 kB | 28.01.2010 |
| MC100 - Product code | mc100_znac_a.pdf | 19 kB | 23.07.2014 |
| MC100 - User manual | mc100-m-en.pdf | 1 014 kB | 17.04.2018 |
| Firmware manuals | |||
| SETR - MORSE Firmware Documentation | firmw400-m-en.pdf | 1 251 kB | 20.09.2013 |
| Software manuals | |||
| MEMCP - Downloading firmware | download-m-en.pdf | 398 kB | 15.02.2008 |
| SETR - Default macro (factory setting) | xfac.mac | 1 kB | 28.12.2007 |
| SETR - Default macro (separate menu) | xde.mac | 2 kB | 28.12.2007 |
| SETR - Default macro (separate menu, rapid) | xder.mac | 2 kB | 26.08.2008 |
| UTILS - generally | utils-m-en.pdf | 472 kB | 04.06.2010 |
| Network Management | |||
| MServer - CE Approval | mserver-d-en.pdf | 69 kB | 02.02.2007 |
| MServer - User manual | MServer-m-en.pdf | 1 196 kB | 22.06.2011 |
| RANEC - Leaflet | ranec-l-en.pdf | 427 kB | 29.05.2009 |
| RANEC - User manual | ranec-m-en.pdf | 914 kB | 07.01.2010 |
| MORSE Guides | |||
| MORSE Guide 1 - Introduction | morse-m1-en.pdf | 848 kB | 25.04.2008 |
| MORSE Guide 2 - Mobile mode, Diagnostic, ... | morse-m2-en.pdf | 1 018 kB | 29.05.2009 |
| MORSE Guide 3 - Ethernet in MORSE | morse-m3-en.pdf | 1 193 kB | 25.09.2012 |
