RE400


Slide background

Plug & Play

Slide background

Transparent bridge

Slide background

1× ETH, 1× RS232

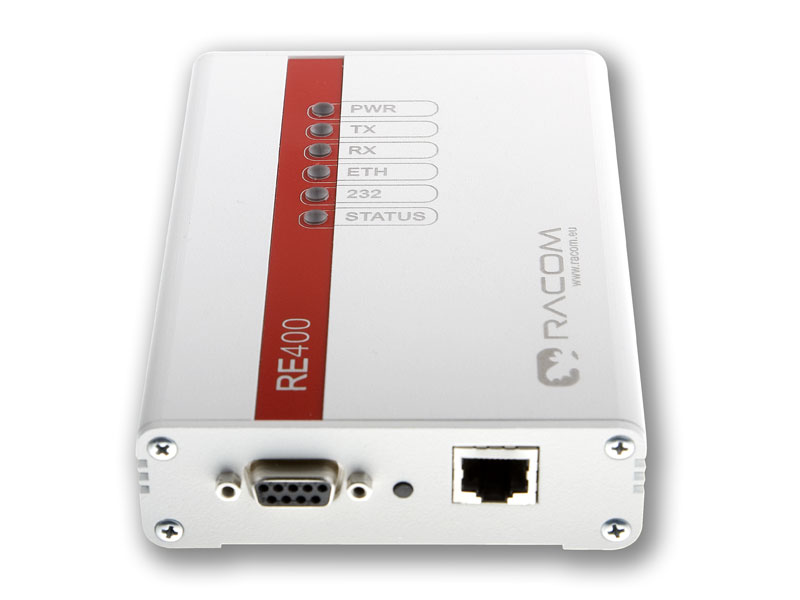

RE400 is the “easiest” radio modem in RACOM product range. It gets very close to true Plug-and-play device, as close as ever possible in private radio networks. The minimum settings necessary are all accessible from one simple web browser screen.

RE400 works as a standard IP network bridge, i.e. it is fully transparent. Every unit can serve as the central master or as a remote terminal and it can also simultaneously operate as a repeater.

The modern digital solution of the radio part (Software Defined Radio) of the RE400 radio modem allows for a wide frequency range a SW configurable channel spacing.







Features


Fully transparent

  • Standard IP network bridge functionality is implemented in the RE400 radio
    modem, i.e. the ETH interfaces of all the radiomodems in a network are
    interconnected according to bridge principles. When a COM interface is used, every
    frame received over a COM is simply broadcast to the COM interfaces of all units in
    the network.

Easy to configure and maintain
  • Web interface
  • All configuration parameters within one page
  • Basic IP knowledge is sufficient
  • CLI via SSH


Security

  • Licensed radio bands
  • FEC, interleaving, proprietary data compression
  • CRC32 data integrity control on Radio channel
  • Password-protected access, https web interface


Coverage

  • 400 MHz band
  • Line of sight is not required
  • Carrier output power adjustable 0,5 or 2W
  • Exceptional data sensitivity
  • High resistance to multipath propagation and interference
  • Any unit can work simultaneously as a repeater


Reliability

  • Every single unit tested in a climatic chamber as well as in real traffic
  • Military or industrial components
  • Industrial rugged die-cast aluminum case


Others

  • Local and remote diagnostics
  • DIN rail mounting
  • L-bracket, flat-bracket, direct mounting
  • CE approval


Specification

Radio parameters
Frequency bands 373.25 – 484 MHz
Models: 373-402; 400-420; 417-447; 435-466; 462-484 MHz
Channel spacing 6.25 / 12.5 / 25 kHz td>
Frequency stability +/- 1.0 ppm
Modulation 2CPFSK
RF Data rate 10.4 kbps / 25 kHz
5.2 kbps / 12.5 kHz
2.6 kbps /6.25
FEC (Forward Error Correction) No

Transmitter
Carrier Output power 0.5 or 2 W
Duty cycle 50%
Rx to Tx Time < 1.5 ms

Receiver
Sensitivity -107 dBm / 10.4 kbps / 25kHz
-109 dBm / 5.2 kbps / 12.5kHz
-110 dBm / 2.6 kbps / 6.25kHz

Electrical
Primary power 10.8 – 30 VDC or PoE (38-57 VDC)
Rx 430 mA; 145 mA/48 V
Tx 0.5 W: 700 mA /13.8V; 230 mA/48 V
2W: 950 mA/13.8V; 310 mA/48 V
Sleep mode No

Interfaces
Ethernet 10/100 Base-T Auto MDI/MDIX RJ45
COM RS232 DB9F
300-115200 bps
Antenna 50 Ohms SMA female
LED panel Power, Tx, Rx, ETH, 232, Status

Environmental
Operating temperature -25 to +55 °C
Humidity 5 to 95% non-condensing
Storage temperature -35 to +85 °C

Mechanical
Casing Hard aluminium
Dimensions 31 H x 96 W x 137 D mm
Weight 0.3 kg
Mounting DIN rail, flat-bracket

SW
Operating modes Bridge
Data integrity control CRC 32
Encryption No

Diagnostic and Management
Radio link testing Ping + RSS

Approvals
Radio CE
ETSI EN 300 113-1 V1.6.2 (2009-11)
EMC (electromagnetic compatibility) ETSI EN 301 489-1 V 1.6.1
Electrical Safety EN 60950-1 ed.2 :2006

Applications

  • Polling type networks
  • Water
  • Oil & Gas
  • Electricity
  • Smart grid
  • POS & ATM
  • Lottery
  • Weather
  • References

Note: Since RE400 is fully transparent, it should not be used in applications which would generate collision-type traffic, e.g. in report-by-exception SCADA systems. The RE400 is suitable for master slave (polling type) applications where a single communication centre controls the communication flow.

Configuration & diagnostics

Management of RE400 radio modems is very simple and straightforward. It is done using any www browser connected via the Ethernet interface. Even remote radio modem units can be configured, however the response speed is limited by the data rate of the radio network – 10.4 kbps.

The Received Signal Strength and Data Quality information is available for individual radio connections. The pingtool can be used to diagnose a particular radio hop as well.

The complete configuration of a radio modem can be saved in a file and edited
offline in the same web interface. The stored configuration file can be
uploaded to any radio modem, making maintenance tasks very quick and simple.

Off line configuration

Download


RE400
Datasheet - RE400 - A3 RE400_data_A3.pdf494 kB2011/10/21
Datasheet - RE400 RE400_data.pdf494 kB2011/08/05
RE400 - Production code re400_znac_a.pdf5 kB2009/05/12
RE400 - Quick Start re400-qs-en.pdf249 kB2010/06/01
RE400 - User manual changes re400-m-en-clog.txt2 kB2008/08/05
RE400 - User manual re400-m-en.pdf1 332 kB2013/06/25
Approvals
RE400 - CE Approval re400-d-en.pdf48 kB2011/03/10
