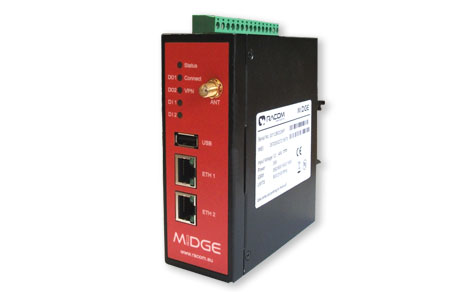

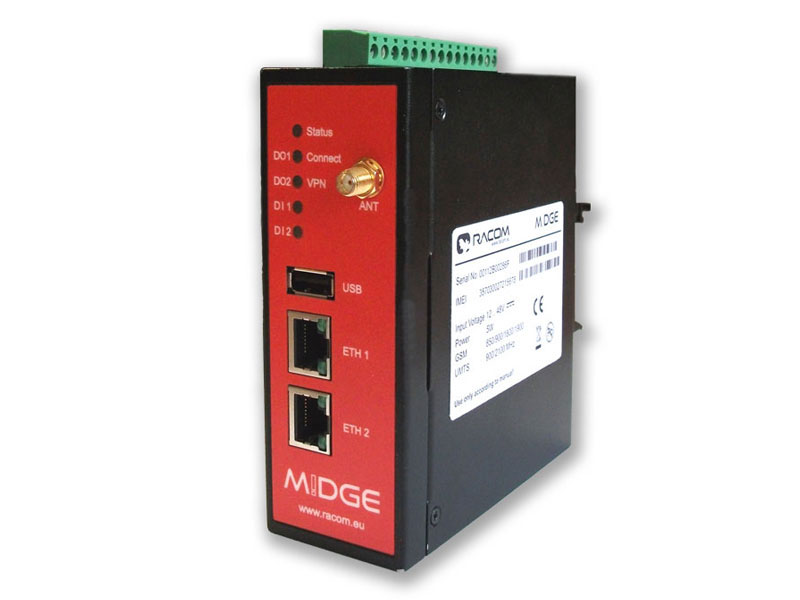

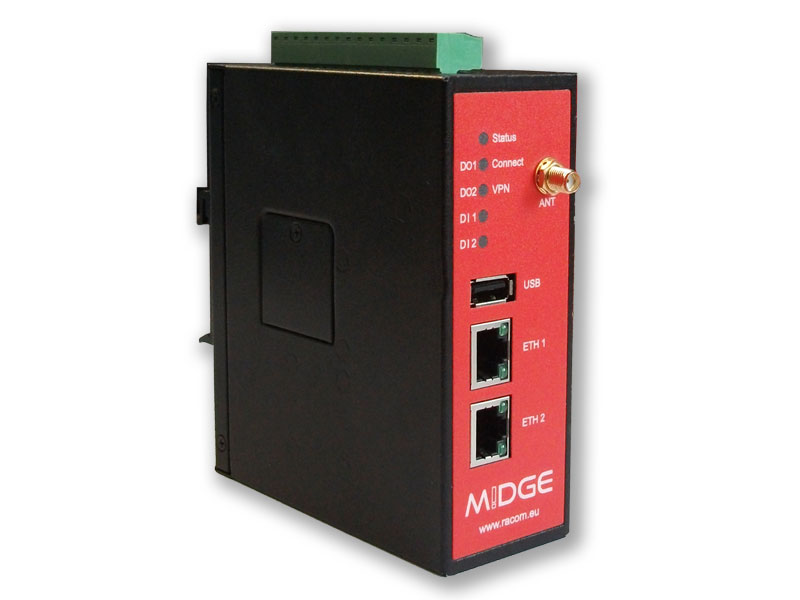

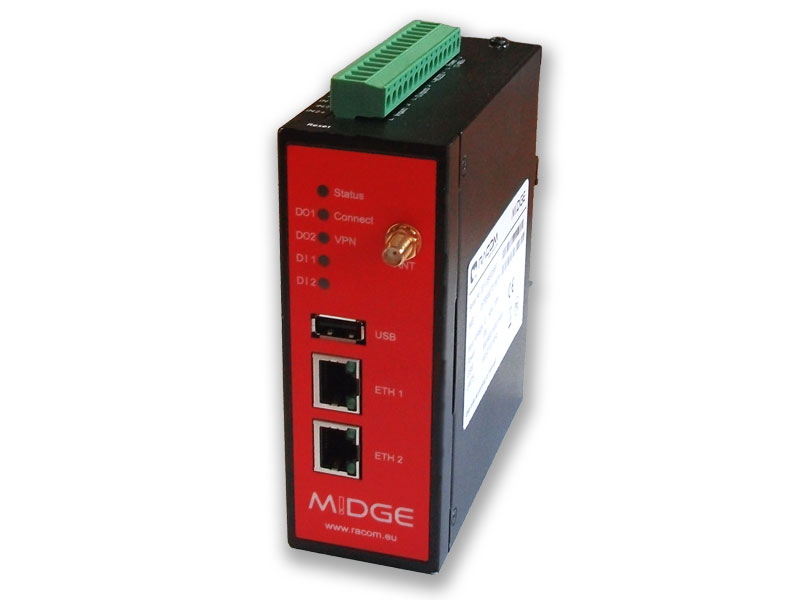

M!DGE - GPRS/UMTS/LTE Router


Slide background

LTE/HSPA+/UMTS/EDGE/GPRS

Slide background

Serial SCADA protocols

Slide background

2×ETH, 1×COM

1×USB, 2×DI, 2×DO



M!DGE wireless routers have been specially designed for SCADA and Telemetry, nevertheless are well suited to many different wireless applications. M!DGE HW and SW is ready to maintain reliable and secure connections from an unlimited number of remote locations to a central server. Both standard Ethernet/IP and serial interfaces are available. Moreover, two digital inputs and two digital outputs can be used for direct monitoring and control of application devices.

M!DGE versatility is further enhanced by the two independent Ethernet ports. These can be configured to either support two independent LANs (e.g. LAN and WAN settings), or simply connect two devices within one LAN (effectively replacing an Eth switch). M!DGE software is based on well proved components, including an Embedded Linux operating system and standard TCP/IP communication protocols.

more…

M!DGE combined with an MG102i two-SIM router in one network is quite easy to do because of fully compatible interface settings and behaviour on all HW interfaces. Thanks to compact size and versatility, M!DGE wireless routers prove indispensable in many SCADA and Telemetry, as well as POS, ATM, Lottery and Security/Surveillance applications.

M!DGE, together with the RACOM RipEX radio router, offers an unrivalled solution for combining GPRS and UHF/VHF licensed radio in a single network. Even a single RipEX in the centre of a M!DGE network allows for efficient use of addressed serial SCADA protocols.






Features


Mobile Interface Parameters

  • Mobile Connection LTE, HSPA+, HSDPA, HSUPA, UMTS, EDGE, GPRS and GSM
  • Global connectivity
  • Transparent hand-over between 2G/3G/4G

Power supply
  • Redundant dual power input pins
  • Input voltage: 10.2–57.6 VDC
  • Max. power consumption: 5 W


Services /Networking


Interfaces

  • 2 Ethernet ports: LAN, WAN/LAN
  • RS232
  • 2× DI, 2× DO
  • USB host


SCADA protocols

Serial

  • Modbus, IEC101, DNP3, Comli, DF1, RP570, Siemens 3964(R) and others
  • Serial SCADA protocol addresses are mapped to IP addresses

Ethernet

  • TCP(UDP) protocols (e.g. IEC104, DNP3/TCP, etc.) are handled transparently


Diagnostic and Management

  • Web interface, CLI available
  • File configuration
  • OTA SW update
  • Advanced troubleshooting
  • SMS remote control, SMS and E-mail notification
  • SNMP


Specification

Mobile Interface UMTS Multimode HSPA+, HSDPA, HSUPA, UMTS, EDGE, GPRS and GSM
3G–HSPA+, HSDPA, HSUPA, UMTS: 850/900/1900/2100 MHz
2G–EDGE, GPRS, GSM: 850/900/1800/1900 MHz
Data rates: max. 14.4 Mbps downlink / 5.76 Mbps uplink
LTE Multimode LTE, HSPA+, UMTS, EDGE, GPRS, GSM
4G–LTE: 800/900/1800/2100/2600 MHz
3G–UMTS/HSPA+: 900/2100 MHz
2G–GSM/GPRS/EDGE: 900/1800/1900 MHz
Data rates up to 100 Mbps downlink / 50 Mbps uplink
Ethernet 2× Ethernet 10/100 Base-T, Auto MDX, 2× RJ45, bridged or routed
Serial Interface 1× 3-wire RS232 on 15-pin screw terminal block, SCADA protocols
Digital I/O 2 digital inputs 0–5.0 VDC level 0
7.2–40 VDC level 1, maximum voltage 40 VDC
2 digital outputs Relay outputs 1st NO, 2nd NC
Limiting continuous current 1 A
Max. switching voltage 60 VDC, 42 VAC (Vrms)
Maximum switching capacity 60W on 15-pin terminal block
USB service interface USB host interface supporting memory devices
USB type A connector
Antenna Interface Impedance: 50 Ω
Connector: SMA female
Power Supply Input voltage: 10.2–57.6 VDC (12–48 VDC -15% / +20%)
Power consumption: Rx max. 3.2 W
Tx max. 5 W
Environmental Conditions For indoor use only, IP40

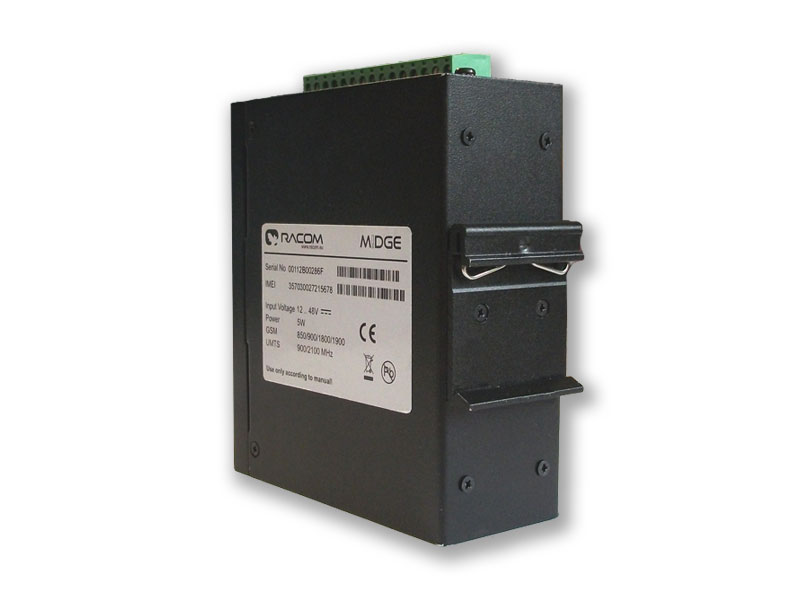

Metal casing, DIN rail mounting kit included
Temperature range:
-25 to +70°C (-13 to +158°F) – M!DGE UMTS
-25 to +60°C (-13 to +140°F) – M!DGE LTE
Humidity: 0 to 95 % (non condensing)
Overvoltage Category: II
Pollution Degree: 2

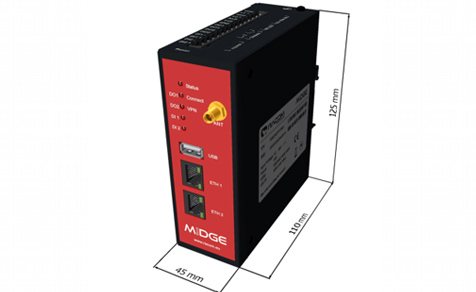

Dimensions / Weight 125 × 45 × 110 mm (4.92 × 1.77 × 4.33 in), 450 g (1 lbs)
Type Approval CE, FCC
Options
Antennas Various antennas available suitable for your application
Mounting kit Flat-bracket mounting kit

Applications

Accessories

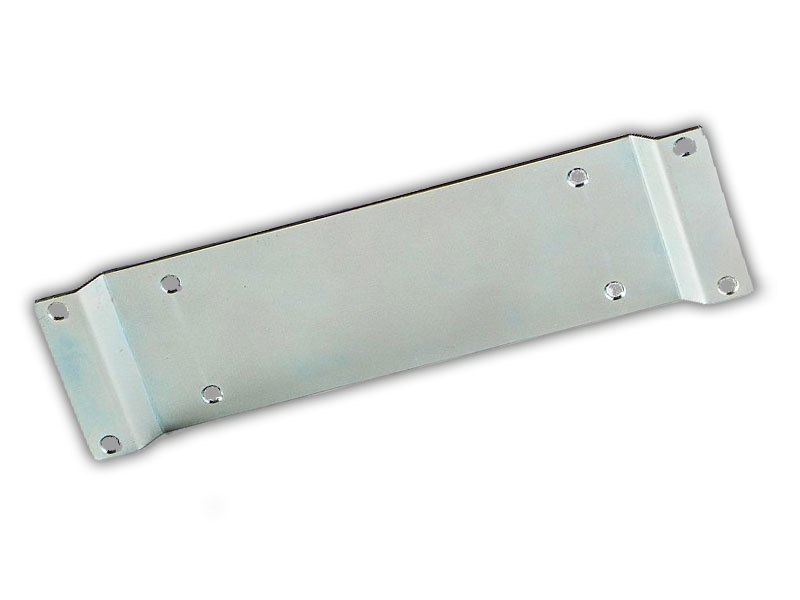

Flat-bracket
  • Substitution of DIN rail mounting kit (standard accessory) for mounting to flat surfaces
  • Flat surfaces mounting

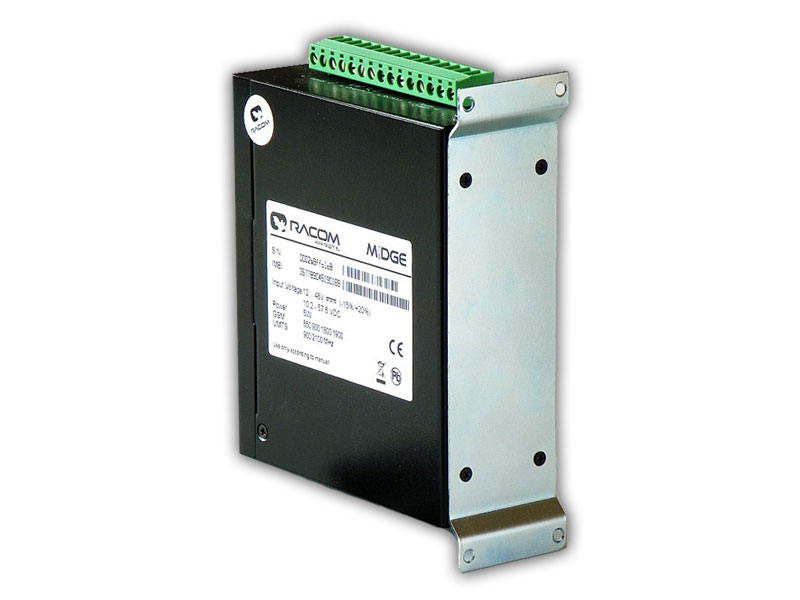

Flat-bracket
2

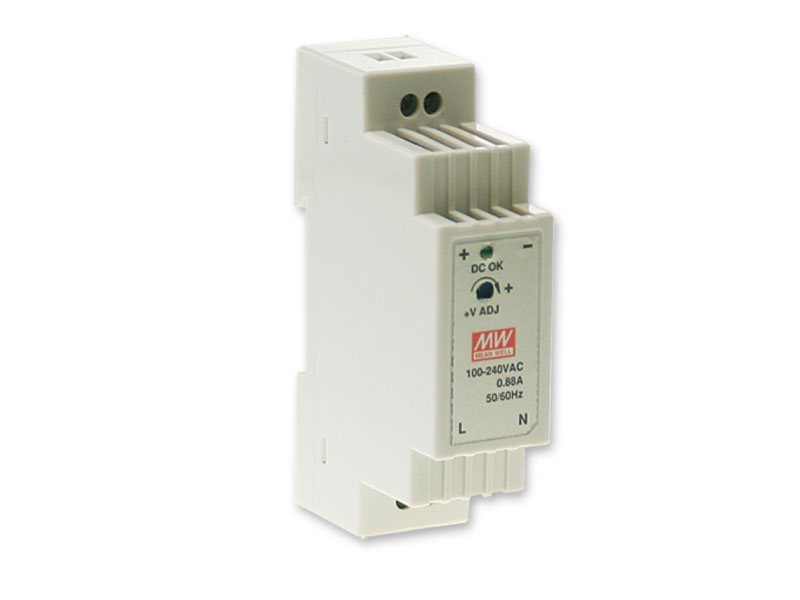

Power Supplies

  • Heavy duty 3rd party products, tested in all environments
  • Recommended by RACOM:
Power Supplies
2

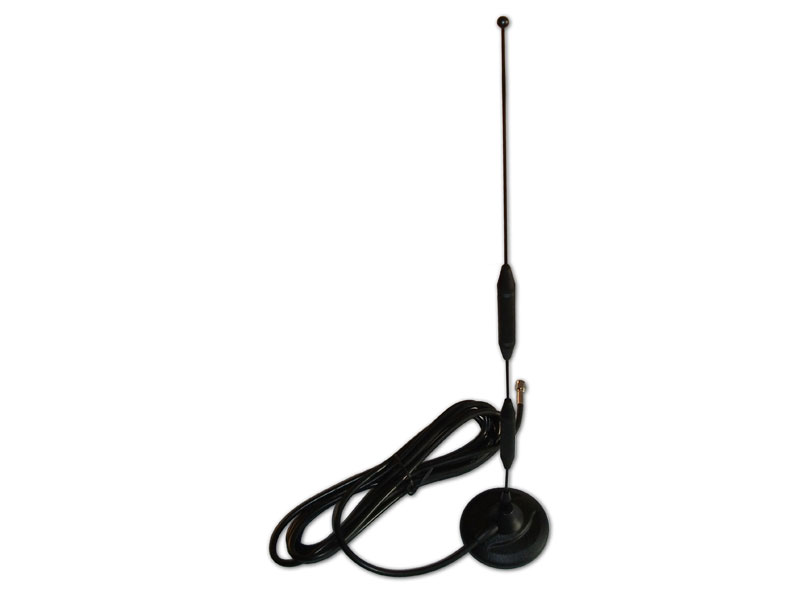

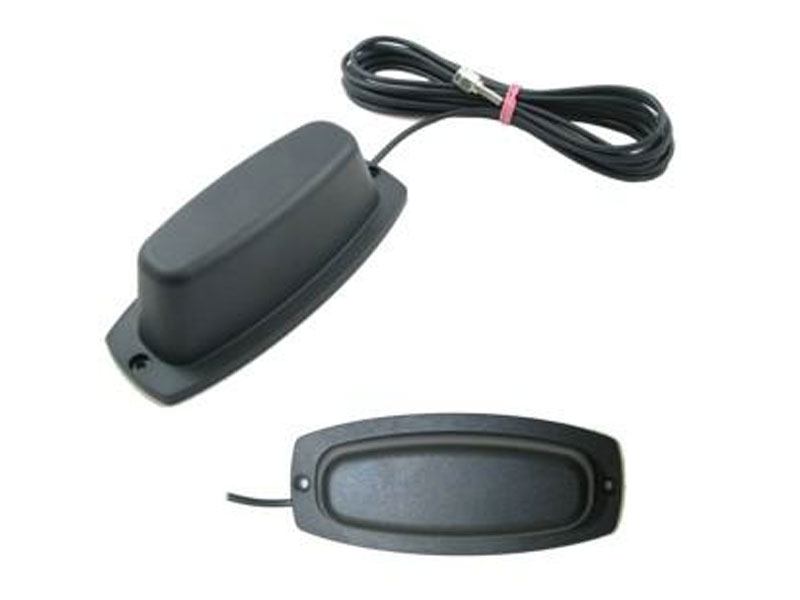

Antennas

Antenna
2


Demo case

  • M!DGE is a part of RipEX demo case
  • Outside dimension: 455 × 365 × 185 mm
  • Weight approx. 4 kg (excluding the RipEx’s and M!DGE)
Demo case
4
