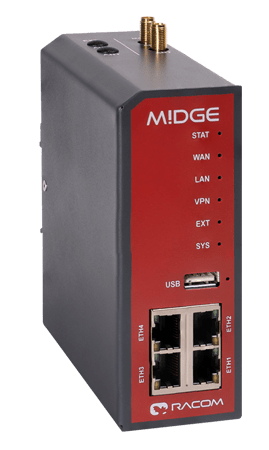

M!DGE – Промышленные Сотовые Роутеры
M!DGE – Промышленные Сотовые Роутеры
M!DGE – Промышленные Сотовые Роутеры
Ключевые особенности
L2TP (M!DGE2)
PPTP (M!DGE2)
OpenVPN (M!DGE2)
DHCP (M!DGE2)
Устройство
Менеджмент
Контроль Доступа
M!DGE3

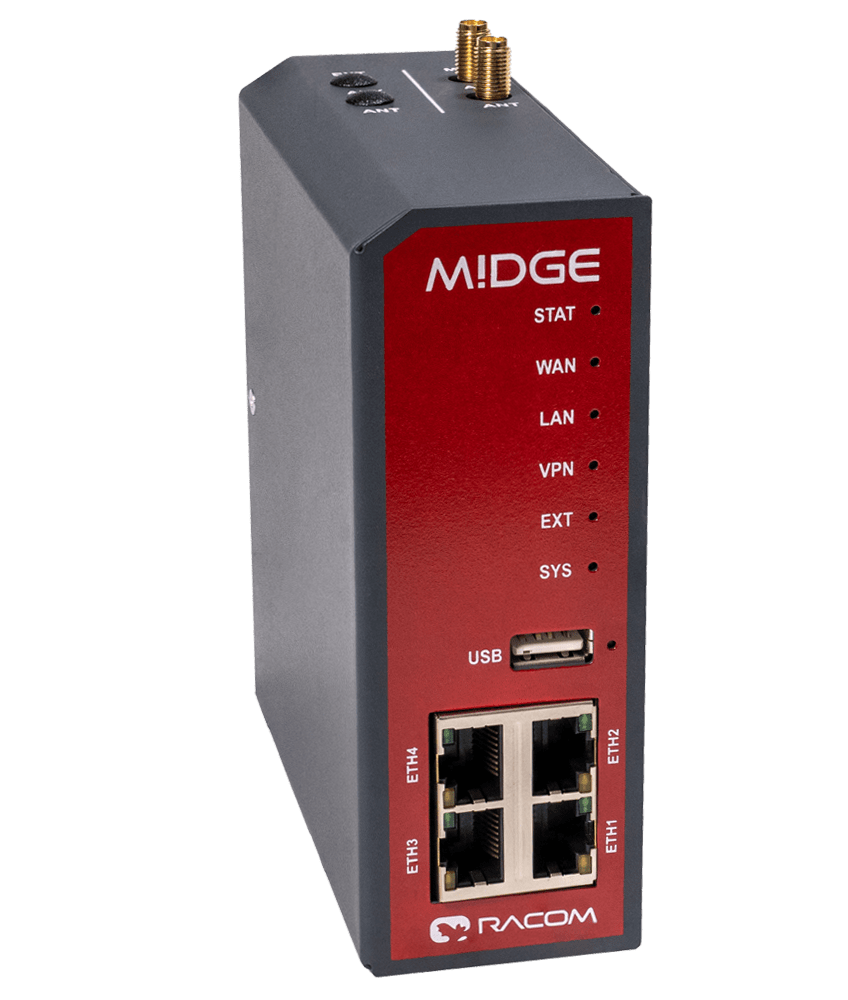

M!DGE2
Безопасность Данных
M!DGE3
M!DGE2
Устройство
Сотовая сеть
Подключаемость
Уникальные опции
Последовательные
Специальные программные драйверы переносят адреса последовательных протоколов SCADA на IP адреса M!DGE и уменьшают количество данных, передаваемых через эфир.
M!DGE3
M!DGE2
Ethernet
Радио и Сотоввая технологии используются в одной сети и проявляют свои лучшие качества.
| Характеристики сети | |
| Радио | Сотовая |
| Частная сеть — полностью под контролем пользователя | Публичная сеть – зависимость от оператора сети |
| Один пользователь – гарантированная емкость и качество | Многие пользователи влияют на емкость и качество |
| Лицензированные частоты – гарантированное качество сервиса | Публичные сети – качество сервиса не гарантируется |
| Более высокие инвестиции, гарантированная оплата государству | Более низкие инвестиции, непредсказуемая оплата частной компании |
| Критически важные приложения реального времени | Не критически важные приложения |
Другие детали
M!DGE3
M!DGE2
M!DGE3
Один слот, который можно использовать для расширения:
M!DGE2
Два слота можно использовать для аппаратного расширения:
M!DGE3
M!DGE2
Кастомизация ПО (MIDGE2)
5G
Most operators are building 5G NSA (non-standalone) networks. 5G NSA networks need the existing 4G/LTE network to be functional, so it cannot be switched off.
Building 5G SA (standalone) networks is very expensive and it is highly probable that 5G SA will only be built in locations with high subscriber density.
Since the majority of new 5G networks are NSA and they need existing 4G/LTE infrastructure to be functional, there is no need to worry that M!DGE3 or M!DGE2 will not work in them.
Applications where M!DGE is used will not benefit from the main advantages of future 5G SA networks (high speed, low latency…). As it is not clear when and where the 5G SA networks will be built, it does not make sense to serially equip M!DGE with an expensive 5G module now. A better and more economical option is to add the mPCI expansion board only in cases where it is really necessary.
4G, 3G, 2G
M!DGE fully supports all modes and generations of traditional 4G, 3G, 2G.
Trade name – trade and marketing name of the product. This name is used for all products within the same product family.
Possible values: M!DGE
Gen. – generation of the product of specific Trade name. The very first generation does not have any number in this position.
Possible values: 3
Main
Possible values:
N – not used
W – Main cellular module, Bands W
Bands:
W – 4G/3G/2G, Global
For frequency bands
Ext. – Extension board module embedded in mPCIe slot
Possible values:
N – not used
W – Extension cellular module, Bands W; Part No.: mPCIe-W
Bands:
W – 4G/3G/2G, Global
For frequency bands
G – Extension GPS (GNSS) module; Part No.: mPCIe-GPS
C – Extension 2× RS232; Part No.: mPCIe-COMS
Note: just one option for mPCIe slot is possible
Only one option for mPCIe slot is possible.
SW keys – if unit is ordered with SW keys, all keys are specified in this bracket. SW key can be ordered independently for specific S/N anytime later on.
Possible values:
SFP – enables SFP interface; Part No.: M!DGE3-SW-SFP
Type – specific product type
Possible values:
M!DGE3
Code – part of order code which is printed on Product label on the housing (SW keys are not HW dependent and can be ordered later on, so they are not printed on Product label).
Order code – the complete product code, which is used on Quotations, Invoices, Delivery notes etc.
In order to find out the correct Order code, please use E-shop.

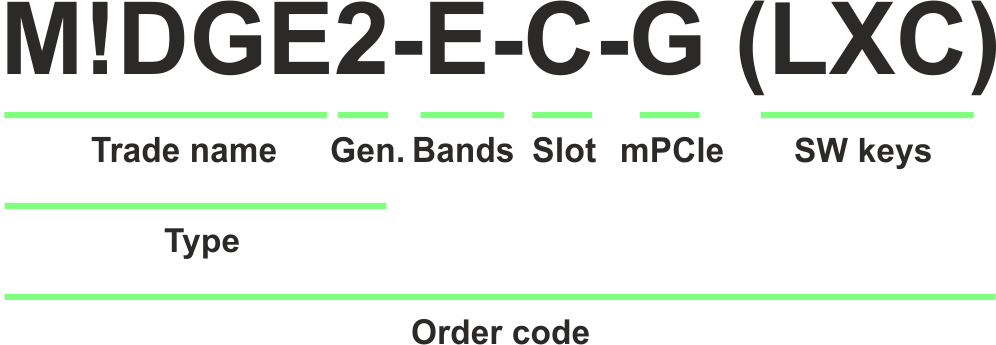

Trade name – trade and marketing name of the product. This name is used for the all products within the same product family.
Possible values: M!DGE
Gen. – generation of the product of specific Trade name. The very first generation doesn’t have any number in this position.
Possible values: none, 2
Bands – frequency bands
Possible values:
E – 4G/3G/2G, Europe, Middle East, Africa
P – 4G/3G/2G, Asia, Pacific, South America
A – 4G/3G/2G, Americas
U – only 3G/2G, world wide
Note: ‘P’ and ‘A’ are available for high volumes only
Slot – Proprietary extension slot
Possible values:
N – not used
C – Expansion 1x RS232/485 + 1×DI,1×DO, Part No.: M!DGE2-HW-COM/IO
mPCIe – mPCIe slot
Possible values:
N – not used
E – Expansion cellular module, Bands E, Part.No.: mPCIe-E
P – Expansion cellular module, Bands P, Part.No.: mPCIe-P
A – Expansion cellular module, Bands A, Part.No.: mPCIe-A
Bands:
E – 4G/3G/2G, Europe, Middle East, Africa
P – 4G/3G/2G, Asia, Pacific, South America
A – 4G/3G/2G, Americas
G – GPS (GNSS) module, Part.No.: mPCIe-GPS
Note: just one option for mPCIe slot is possible
Bands, Slot, mPCIe positions are used only for M!DGE2.
SW keys – if unit is ordered with SW keys, all keys are specified in this bracket. SW key activates the feature, which is under the license. SW key can be ordered independently for specific S/N anytime later on.
Possible values M!DGE2:
LXC – Linux container, Part No.: M!DGE2-SW-LXC
SERVER – Server clients extension, Part No.: M!DGE2-SW-SERVER
| Feature | Default | SW key SERVER |
| OpenVPN clients | 10 | 25 |
Type – specific product type for which type approvals like CE, FCC etc. are issued
Possible values:
M!DGE, M!DGE2
Order code – the complete product code, which is used on Quotations, Invoices, Delivery notes etc.
In order to find out the correct Order code, please use RACOM WebService.
Спецификации
| M!DGE3 | M!DGE2 | |
| Frequency bands | One world wide model | 3 models: EU, Asia, Americas |
| CPU | 800 MHz Dual Core | 600 MHz Single Core |
| Ethernet | 4x 1 Gb/s | 4x 100 Mb/s |
| SFP | Yes | No |
| Serial | 1x RS232 (5 pin) / RS485 | 1x RS232 (3 pin) |
| Terminal servers | 5 | 2 |
| Inputs / Outputs | 3x DI, 3x DO, 1x DiffDI | 1x DI, 1x DO |
| Dynamic routing | OSPF, BGP, Babel | OSPF, BGP |
| Responsive web | Yes | No |
| Wifi management | Yes | No |
| EN 61850-3 | Yes | No |
| Electrical | |||
| Primary power | 10 to 50 VDC, negative GND | ||
| Rx | 4.8 W / 24 V, see details | ||
| Tx | 7.8 W / 24 V, see details | ||
| Sleep mode | 0.01 W | ||
| Interfaces | |||
| Ethernet | 10/100/1000Base-T Auto MDI/MDIX | 4× RJ45 | |
| SFP | 10/100/1000Base-T or 1000Base-SX or 1000Base-LX user exchangeable SFP with max. power consumption 1.25 W |
1× SFP | |
| COM | RS232 / RS485 SW configurable | Terminal block | |
| 600 b/s – 1 Mb/s | |||
| USB | USB 3.0 | Host A | |
| Antenna | 50 Ω 2×2 MIMO |
2×SMA female | |
| Inputs/Outputs | 1× HW alarm input
1× HW alarm output 1× Sleep input |
Power connector |
|
| 2× DI, 2× DO, 1× diffDI
not available when Expansion board 'C' (COM ports) is used |
RJ45 | ||
| Optional interfaces | ||
|
Expansion board 'G' |
Active antenna 3.3 VDC SMA female (EXT1 on bottom) | |
| 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN | ||
|
Expansion board 'C' |
COM2: RS232 - 5 pin (RxD, TxD, GND, RTS, CTS) 600 b/s to 2 Mb/s COM3: RS232 -3 pin (RxD, TxD, GND) 2.4 kb/s to 921.6 kb/s RJ45 (DI/DO on front panel) |
|
|
Expansion board 'W' |
see Cellular interface | |
| Indication LEDs | |||
| LED panel | 5× tri-color status LEDs (SYS, WAN, EXT, VPN, COM) | ||
| ETH | 4× RJ45 (Link and Activity LEDs), 1× SFP (Status LED) | ||
| Environmental | |||
| IP Code (Ingress Protection) | IP40, for indoor use only | ||
| MTBF (Mean Time Between Failure) | > 900 000 hours (> 100 years) | ||
| Service life of system | >= 15 years | ||
| Operating temperature | −40 to +70 °C ( −40 to +158 °F) | ||
| Operating humidity | 5 to 95 % non-condensing | ||
| Storage | −40 to +85 °C ( −40 to +185 °F) / 5 to 95 % non-condensing | ||
| Mechanical | |||
| Casing | Metal | ||
| Dimensions |
H×W×D: 132×43×110 mm (5.20×1.69×4.33 in) |
||
| Weight |
0.50 kg (1.1 lbs) |
||
| Mounting | DIN rail, optionally: flat-bracket or corner-bracket | ||
| SW | |||
| User protocols on COM | DNP3, DF1, IEC101, Modbus RTU, PR2000, RDS, Siemens 3964(R), COMLI, SAIA S-bus, Mars-A, UNI, Async Link | ||
| User protocols on Ethernet | Modbus TCP, IEC104, DNP3 TCP, Comli TCP, Terminal server… | ||
| Serial to IP convertors | DNP3 / DNP3 TCP, Modbus RTU / Modbus TCP | ||
| Security | |||
| Management | HTTPS (own certificate), SSH | ||
| Role-based access control (RBAC) | 4 levels (Guest, Tech, SecTech, Admin) | ||
| WiFi management access (optional) | WPA2-PSK secured | ||
| VPN | IPsec, GRE | ||
| VLAN | IEEE 802.1Q (tagging) | ||
| AAA protocol | RADIUS | ||
| Firewall | Layer 2 - MAC, Layer 3 - IP, Layer 4 - TCP/UDP | ||
| FW | Digitally signed | ||
| HW tamper | Case opening evidence | ||
| Diagnostic and Management | |
| Link testing | ICMP ping |
| Status information | User interfaces |
| Statistics |
Historical and differential statistics for Rx / Tx Packets on all user interfaces (e.g. ETH 1-5, COM 1-3, TS 1-5) |
| Statistics history | Several weeks |
| Event log | Events filtered by time, severity, user, remote IP address and type of event |
| SNMP | SNMPv1, SNMPv2c, SNMPv3 Trap / Inform notifications generation as per settings |
| NTP | Client / Server |
| Monitoring | Real time analysis of all interfaces (e.g. ETH 1-5 , COM 1-3, TS 1-5) and internal interfaces between software modules, see details |
| Standards | |
| CE | RED; RoHS; WEEE |
| Spectrum |
ETSI EN 301 511 V12.5.1 |
| EMC (electromagnetic compatibility) |
ETSI EN 301 489-1 V2.2.3 |
| Product safety | EN 62368-1:2014 + A11:2017 |
| RF health safety | EN 62311:2008 |
| Electric power substations environment |
IEEE 1613:2009 IEEE 1613.1:2013 EN 61850-3:2014 |
| Environmental | EN 61850-3: 2014 |
| Vibration & shock |
EN 60068-2-6:2008 |
| Seismic qualification | EN 60068-2-27:2010 |
| IP rating | EN 60529:1993 + A1:2001 + A2:2014 |
| Cellular interface | M!DGE2 |
| Frequency bands E | 4G LTE (also 5G NSA) Band 20 (800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 3 (1800 MHz), Band 1 (2100 MHz), Band 7 (2600 MHz) |
| 3G UMTS/HSDPA/HSUPA Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900 MHz), Band 1 (2100 MHz) |
|
| 2G GSM/GPRS/EDGE GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz |
|
| Frequency bands P | 4G LTE (also 5G NSA) Band 28 (750 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 3 (1800 MHz), Band 1 (2100 MHz), Band 7 (2600 MHz) |
| 3G UMTS/HSDPA/HSUPA Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900 MHz), Band 1 (2100 MHz) |
|
| 2G GSM/GPRS/EDGE GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz |
|
| Frequency bands A | 4G LTE (also 5G NSA) Band 17 (700 MHz), Band 5 (850 MHz), Band 4 (1700 MHz), Band 2 (1900 MHz), Band 7 (2600 MHz) |
| 3G UMTS/HSDPA/HSUPA Band 5 (850 MHz), Band 8 (900 MHz), Band 4 (AWS, i.e. 1700 MHz), Band 2 (1900 MHz), Band 1 (2100 MHz) |
|
| 2G GSM/GPRS/EDGE GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz |
|
| Frequency bands U | 3G UMTS/HSDPA/HSUPA Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900 MHz), Band 1 (2100 MHz) |
| 2G GSM/GPRS/EDGE GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz |
|
| Specification | 4G LTE 3GPP Release 9 Long Term Evolution (LTE) Evolved Uni. Terrestrial Radio Access (E-UTRA) Frequency Division Duplex (FDD) DL Multi-Input Multi-Output (MIMO) 2×2 |
| 3G UMTS/HSDPA/HSUPA 3GPP Release 8 Dual-Cell HS Packet Access (DC-HSPA+) UMTS Terrestrial Radio Access (UTRA) Frequency Division Duplex (FDD) DL Rx diversity |
|
| 2G GSM/GPRS/EDGE 3GPP Release 8 Enhanced Data rate GSM Evolution (EDGE) GSM EGPRS Radio Access (GERA) Time Division Multiple Access (TDMA) DL Advanced Rx Performance Phase 1 |
|
| Data rates | up to 150 Mbps downlink / 50 Mbps uplink |
| SIM slot | 2× Micro SIM |
| Electrical | |
| Primary power | 12 – 24 VDC, +/- 20% |
| Power consumption | Average 7W (including max. 2.5W on USB port) |
| Interfaces | |
| Ethernet | 4× Ethernet 10/100 Base-T, Auto MDX, 4× RJ45, bridged or routed |
| COM | 1× RS232, 300–115 200 bps, screws, RxD, TxD, GND |
| USB | 1× USB host USB2.0 |
| Inputs/Outputs | 1× DI, 1× DO |
| Antenna | 2× SMA female – receive diversity |
| Expansion | |
| Proprietary extension slot | COM/IO: RS232/RS485 + 1× DI, 1× DO |
| mPCIe slot | GPS (GNSS): U-blox M8 engine 72-channel GPS/QZSS L1 C/A GLONASS L10F BeiDou B1I Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN Pulse per second output |
| The second cellular module: E, P, A, U |
|
| Environmental | |
| IP Code (Ingress Protection) | IP40 |
| MTBF (Mean Time Between Failure) | > 220.000 hours (> 25 years) |
| Operating temperature | — 40 to +70°C |
| Operating humidity | 5 to 95% non-condensing |
| Storage | — 40 to +85 °C (−40 to +185 °F) / 5 to 95 % non-condensing |
| Mechanical | |
| Casing | Metal |
| Dimensions | 125 H × 45 W × 110 D mm (4.9 × 1.8 × 4.3 in) |
| Weight | 450 g (1.0 lbs) |
| Mounting | DIN rail, flat-bracket |
| Security | |
| Management | HTTP, HTTPS, SSH |
| Access accounts | 2 levels (User, Admin) |
| Encryption | Yes (AES256) with IPsec, OpenVPN |
| IPsec | Yes |
| Firewall | Layer 2 – MAC, Layer 3 – IP, Layer 4 – TCP/UDP, SMS filter |
| RADIUS | Yes |
| SW | |
| Fallback management | Yes |
| Connection supervision | Yes |
| Automatic connect recovery | Yes |
| SMS management | Yes |
| Software Development Kit | Full featured |
| Linux container | LXC |
| SMS / E-mail event notification | Yes / Yes |
| Routing | Static / Dynamic |
| BGP / OSPF | Yes / Yes |
| QoS | Yes |
| NAPT | Yes |
| User protocols on Ethernet | Yes |
| User protocols on COM | Modbus RTU, DNP3, IEC101, DF1, COMLI, C24, Cactus, ITT Flyght, RP570, Siemens 3964(R), UNI |
| Serial to IP convertors | Modbus RTU / Modbus TCP, Terminal server |
| VPN | OpenVPN, IPsec, PPTP, GRE |
| VRRP | Yes |
| NTP | Client / Server |
| SNMP | v1, v2c, v3 |
| Type Approval | CE, FCC |
Technical parameters are subject to change without prior notification.
Аксессуары
Компания RACOM является первичным производителем и поэтому поставляет не все варианты доступного оборудования для своих продуктов. Данный список содержит проверенное дополнительное оборудование, которое RACOM может поставлять вместе с устройствами M!DGE. Компоненты имеются в ограниченном количестве и срок поставки может зависеть от сторонних поставщиков. Если вам требуется другое оборудование, свяжитесь с нами или со своим поставщиком.
На рынке много антенн, которые можно использовать с M!DGE. Если вы не уверены в конкретном типе, пожалуйста свяжитесь с нами для консультации.
Бюджетная антенна
Антенна MIMO
Антенна GPS
Крепление на DIN-рейку
Плоский кронштейн
Источники питания постоянного тока
Адаптер USB/ETH
Адаптер Wifi
Поддерживаются все общераспространенные типы модулей SFP. Два протестированных модуля RACOM может поставлять вместе с устройствами M!DGE3. Если вам требуется что-то другое, свяжитесь с нами или со своим поставщиком.
Модуль SFP для оптоволокна
Модуль SFP для Ethernet
Комплект принадлежностей M!DGE3 поставляется с каждым устройством

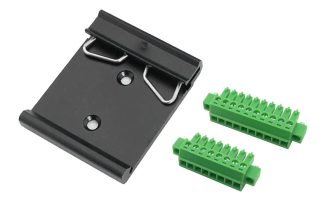

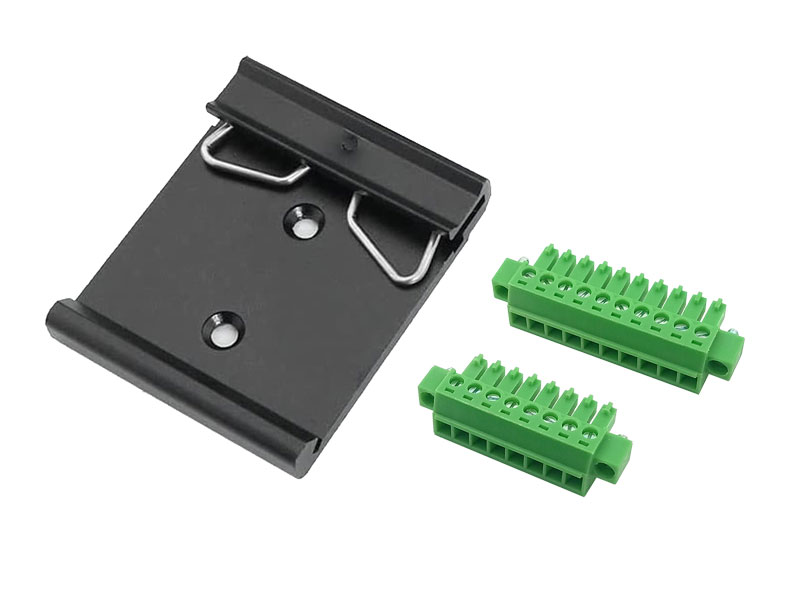

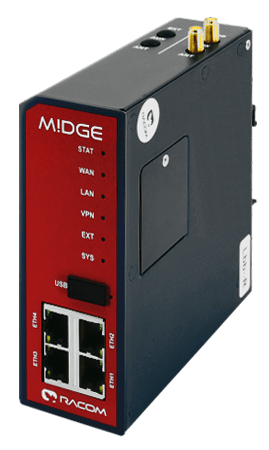

Комплект принадлежностей M!DGE2 поставляется с каждым устройством
Скачать
| Product overview | midge-product-overview.pdf | 1 436 kB | 2022/11/28 |
| Datasheet M!DGE - A4 - ver.4.1 - English | midge-ds-en.pdf | 1 941 kB | 2023/02/07 |
| Datasheet M!DGE - A4 - ver.4.1 - Em português | midge-ds-po.pdf | 1 831 kB | 2023/02/07 |
| Datasheet M!DGE - A4 - ver.4.1 - En español | midge-ds-es.pdf | 2 014 kB | 2023/02/07 |
| Datasheet M!DGE - A4 - ver.4.1 - Francais | midge-ds-fr.pdf | 1 810 kB | 2023/02/07 |
| Брошюра M!DGE - A4 - ver.4.1 - По-русски | midge-ds-ru.pdf | 1 819 kB | 2023/02/07 |
| User manual - M!DGE2 | midge2-man-en.pdf | 10 728 kB | 2023/01/19 |
| User manual - M!DGE3 | midge3-man-en.pdf | 18 300 kB | 2023/02/24 |
| Hybrid networks | midge-hybrid-networks-is.pdf | 1 940 kB | 2019/10/02 |
| Overview | midge-app-en.pdf | 206 kB | 2018/01/18 |
| M!DGE | |||
| Hybrid Network | midge-app-hybnet-en.pdf | 996 kB | 2018/03/02 |
| Introduction | midge-app-intro-en.pdf | 347 kB | 2018/03/02 |
| Serial SCADA Protocols | midge-app-ser-en.pdf | 1 378 kB | 2021/03/30 |
| Typical Usage | midge-app-typuse-en.pdf | 1 361 kB | 2018/03/02 |
| VPN Configuration | midge-app-vpn-en.pdf | 6 452 kB | 2021/04/09 |
| WAN Backup | midge-app-wanbac-en.pdf | 2 072 kB | 2018/03/02 |
| M!DGE3 | |||
| SNMP | ripex2-midge3-app-snmp-en.pdf | 1 893 kB | 2023/03/03 |
| Firmware M!DGE2 | midge2-fw-4.6.40.102.img | 31 167 kB | 2022/06/22 |
| Firmware Release notes M!DGE2 4.6.40 | midge2-fw-rn-en.pdf | 434 kB | 2022/06/30 |
| MIB table | midge2-mib.mib | 42 kB | 2022/05/26 |
| Zabbix ver. 6 templates | midge2-zabbix-v6.0.zip | 4 459 kB | 2022/05/26 |
| Toby L200 (A bands) FW 16.19 A01.04 (since FW 4.4.40.105) | TOBY-L200-A-FW16.19A01.04.tar.gz | 22 621 kB | 2021/05/05 |
| Toby L210 (E bands) FW 16.19 A01.04 (since FW 4.4.40.105) | TOBY-L210-E-FW16.19A01.04.tar.gz | 22 616 kB | 2021/05/05 |
| Toby L280 (P bands) FW 16.19 A01.04 (since FW 4.4.40.105) | TOBY-L280-P-FW16.19A01.04.tar.gz | 22 620 kB | 2021/05/05 |
| Firmware | midge3-fw-2.0.16.0.fwp | 31 745 kB | 2023/02/24 |
| Firmware | midge3-fw-2.0.16.0-patch-2.0.14.0.fwp | 2 042 kB | 2023/02/24 |
| Firmware Release notes | midge3-fw-rn-en.pdf | 210 kB | 2023/02/22 |
| Zabbix ver. 6 templates | midge3-zabbix-v6.0.zip | 5 004 kB | 2023/02/27 |
| MIB table | ra2-mib.zip | 25 kB | 2023/03/02 |
| Antenna LTE/UMTS/GSM, 2,0 dBi, 3 m, SMA connector | ANT-LTE-W1.pdf | 64 kB | 2012/12/04 |
| Antenna MIMO LTE/UMTS/GSM 2.0 dBi, 3 m, 2xSMA connector | ANT-AB0727B.pdf | 338 kB | 2019/06/25 |
| Antenna GPS Active:3-5V, 5m, Magnetic, SMA connector | ANT-GPS-MS-SMA.pdf | 216 kB | 2003/10/30 |
| Powering | |||
| Power supply DC, 85-264VAC,120-370VDC/24VDC/15W, DIN, MeanWell | PWS-AC-DC_24VDC_15W_H.pdf | 705 kB | 2020/08/05 |
| USB adapters | |||
| Adapter USB/Wifi (RipEX2, RAy2, RAy3), Ogemray | OTH-USB_WIFI-W2.pdf | 219 kB | 2018/12/10 |
| Adapter USB/ETH (RipEX2, M!DGE2, RAy3), Axagon | OTH-USB_ETH-XR.pdf | 110 kB | 2020/08/18 |
| SFP modules | |||
| SFP module, 1 Gb Ethernet, RJ45, EDGE | SFP-RJ45-1G-EDGE.pdf | 291 kB | 2021/01/16 |
| SFP module, 2 fibres, SM, LC, 20 km, EDGE | SFP-2F-1G-EDGE.pdf | 477 kB | 2019/11/08 |
| Mounting | |||
| Bracket for flat surface mounting | HOL-MIDGE-FLAT.pdf | 174 kB | 2023/03/10 |
Unboxing
See what you get when you order M!DGE
Basic Setup
Learn how easy it is to setup M!DGE
Power-up
Learn how to Power-up M!DGE
Unboxing
See what you get when you order M!DGE
Basic Setup
Learn how easy it is to setup M!DGE
Power-up
Learn how to Power-up M!DGE
